Center Console Rear Trim, Removing And Installing

Special tools and workshop equipment required

• T-Handle Hook: 3438
  Fig 1: Identifying T-Handle Hook

  Courtesy of AUDI OF AMERICA, LLC

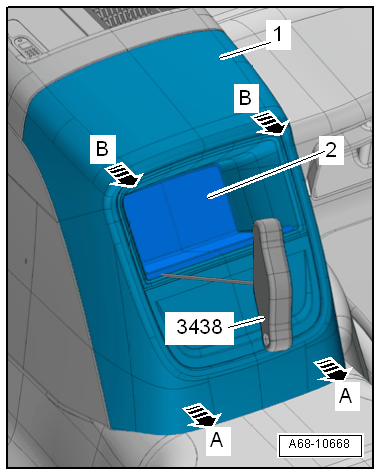

Standard Equipment, Removing

Courtesy of AUDI OF AMERICA, LLC

-- Move the front seats all the way forward.

-- Remove the liner mat -2-.

-- Insert the T-Handle Hook: 3438  on the trim.

-- Remove the lower trim -1- beginning rearward from the center console -A arrows-.

-- Remove the upper trim from the center console -B arrows- and remove.

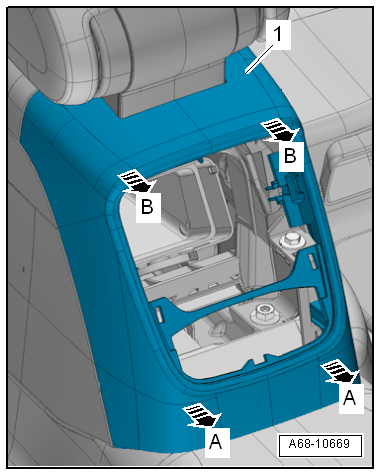

Optional Equipment, Removing

Courtesy of AUDI OF AMERICA, LLC

-- Move the front seats all the way forward.

-- Remove the rear storage compartment in the center console. Refer to CENTER CONSOLE REAR STORAGE COMPARTMENT, REMOVING AND INSTALLING .

-- Grasp with a hand behind the trim -1- and remove rearward from the center console -A arrows-.

-- Remove the upper trim from the center console -B arrows- and remove.

Installing

Install in reverse order of removal.
