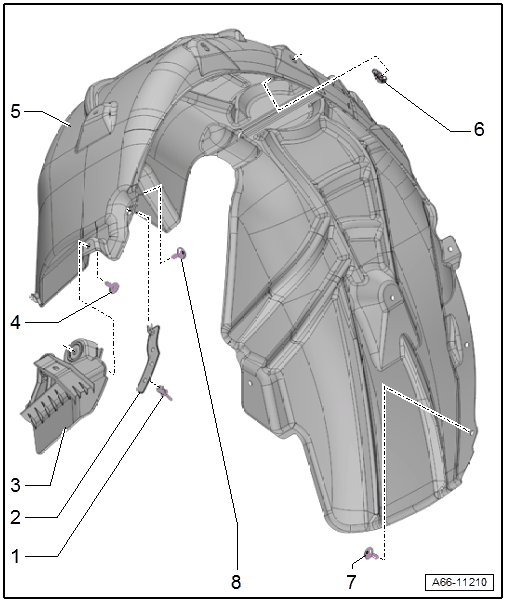

Overview - Rear Wheel Housing Liner
WARNING: This page is about a different car, the 2017 Audi A3, 2016 Audi A3, and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Expanding Rivet
- Quantity: 3
- Cover
- Removing and Installing. Refer to COVER, REMOVING AND INSTALLING .
- Rear Wheel Spoiler
- To remove, loosen the rear wheel housing liner at the front and press it to the side. Refer to REAR WHEEL HOUSING LINER, REMOVING AND INSTALLING .
- Bolt
- 2 Nm
- Quantity: 2
- Rear Wheel Housing Liner
- Removing and Installing. Refer to REAR WHEEL HOUSING LINER, REMOVING AND INSTALLING .
- Clip
- Quantity: 3
- Bolt
- Quantity: 3

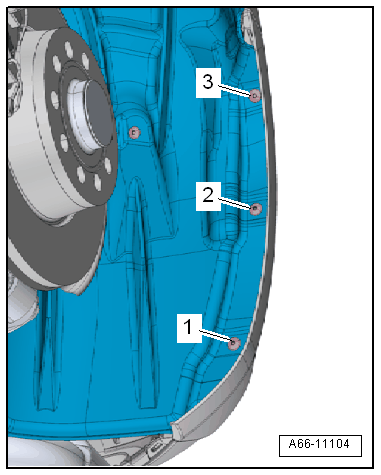

- Tightening sequence. Refer to Fig 1.
- Bolt
- 2 Nm
- Quantity: 3
-- Tighten the bolts to 2 Nm in the sequence -1 to 3-.
