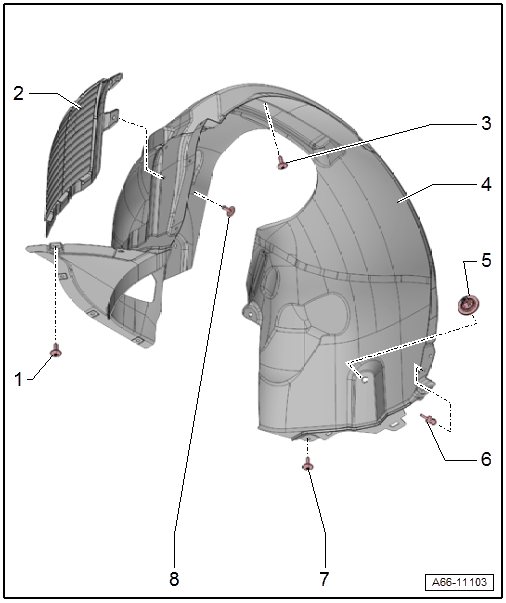

Overview - Front Wheel Housing Liner
WARNING: This page is about a different car, the 2017 Audi A3, 2016 Audi A3, and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 2 Nm
- Quantity: 2
- Exhaust air grille
- For vehicles with a side auxiliary radiator
- Removing and Installing. Refer to EXHAUST AIR GRILLE, REMOVING AND INSTALLING .
- Bolt
- 2 Nm
- Quantity: 9
- Front Wheel Housing Liner
- There are different versions. Refer to the Parts Information.
- Removing and Installing. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .
- Nut
- 2 Nm
- Expanding Rivet
- Quantity: 5
- Bolt
- 2 Nm
- Expanding Rivet
- Quantity: 4
