Right/Left Tail Lamp Bulb -M2- / -M4-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2017 Audi A3, 2016 Audi A3, and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn the light switch to position "0".

-- Insert a small screwdriver into the opening -arrow A- and remove the cover -1- in the direction of -arrow B-.

Courtesy of AUDI OF AMERICA, LLC

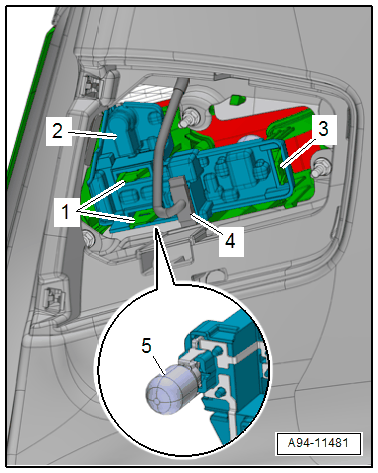

Vehicles through MY 2016

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -4-.

-- Release the locking brackets -1 and 3- and remove the bulb socket -2- from the housing.

-- Remove the tail lamp bulb -5- from the bulb carrier.

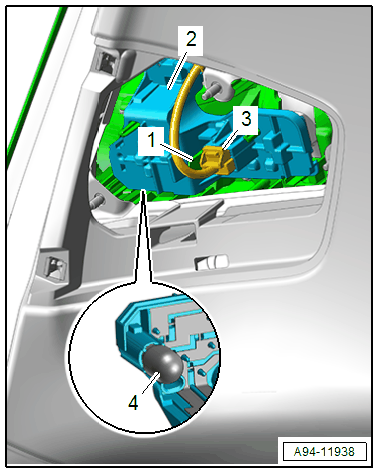

Vehicles from MY 2017

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -3-.

-- Release the locking brackets -1- and remove the bulb socket -2- from the housing.

-- Remove the tail lamp bulb -4- from the bulb holder.

-- Turn the light switch to position "0".

-- Release the cover -1- from the clip in direction of -arrow- using the :3409 .

Courtesy of AUDI OF AMERICA, LLC

-- Release the locking brackets -1, 4 and 5- and remove the bulb socket -2- from the housing.

-- Remove the tail lamp bulb -3- from the bulb carrier.

Courtesy of AUDI OF AMERICA, LLC
