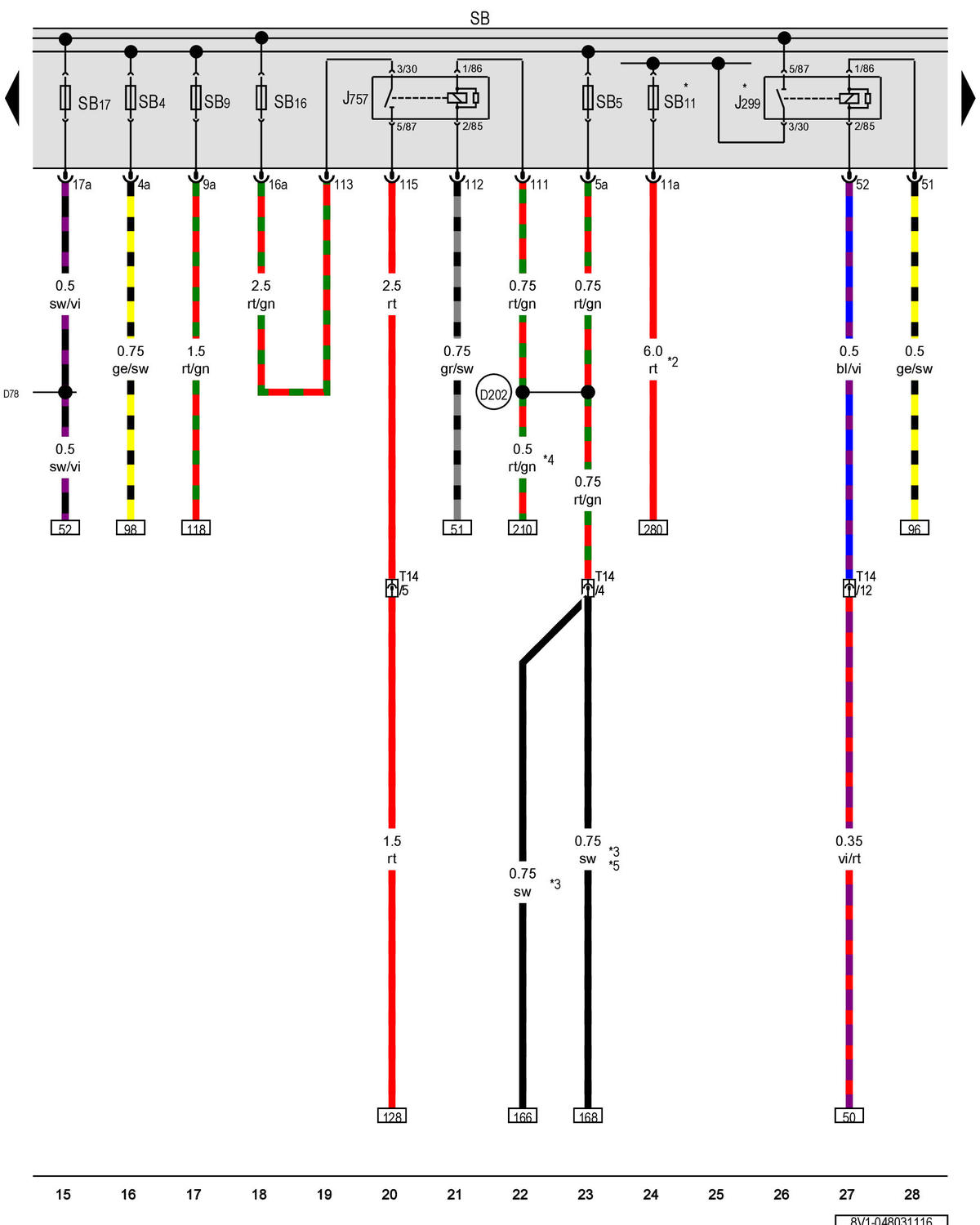

Secondary Air Injection Pump Relay, Engine Component Power Supply Relay: Notes

GWW8V1-048031116

Courtesy of AUDI OF AMERICA, LLC
