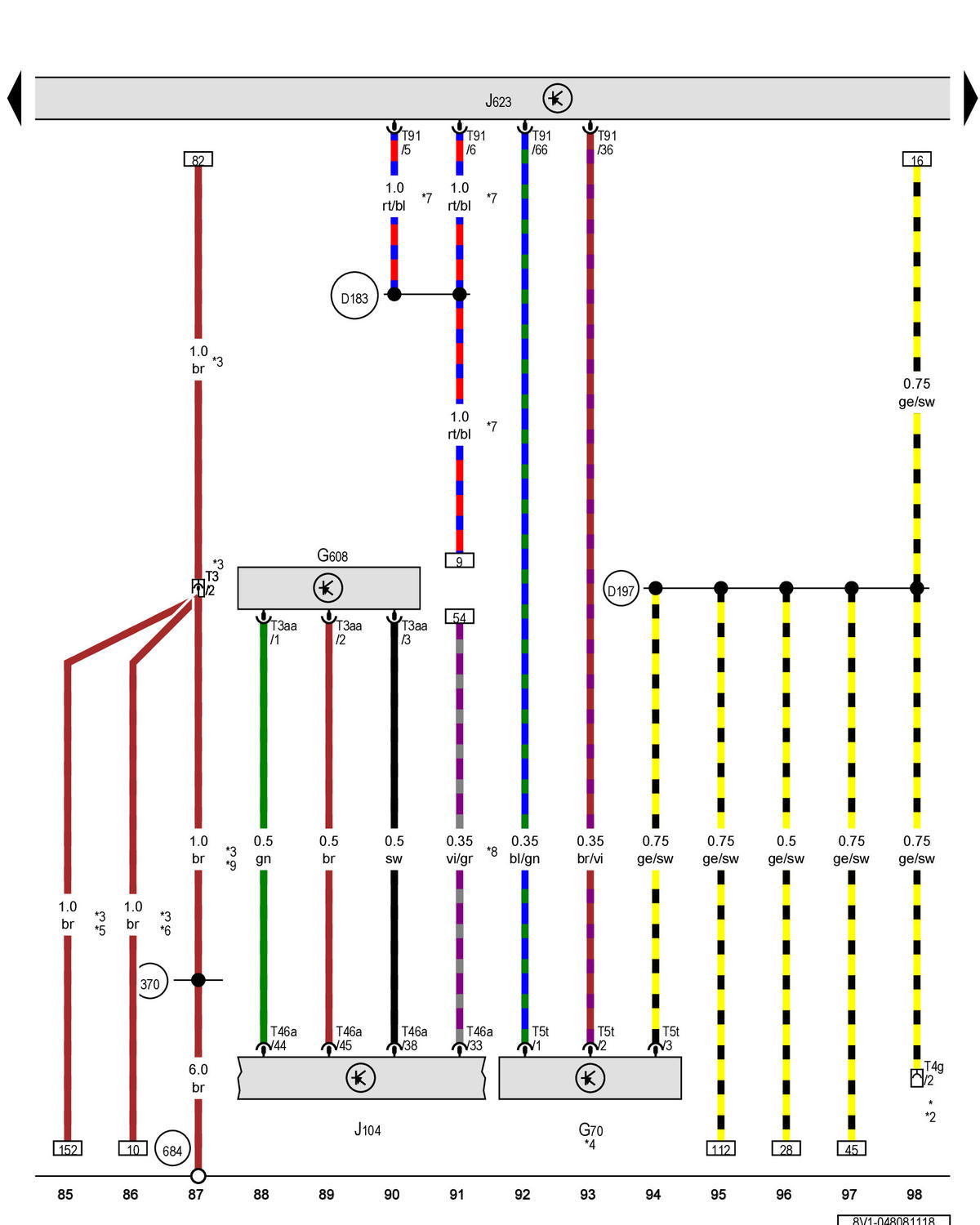

Vacuum Sensor, Engine/Motor Control Module
G70
Mass Airflow Sensor Type: BT, Slpdok:, Aim: BTG70
G608
Vacuum Sensor
J104
ABS Control Module Type: BT, Slpdok:, Aim: BTJ104
J623
Engine/Motor Control Module Type: BT, Slpdok:, Aim: BTJ623
T3
3-Pin Connector
T3aa
3-Pin Connector, Black
T4g
4-Pin Connector Type: BT, Slpdok:, Aim: BTT4g
T5t
5-Pin Connector
T46a
46-Pin Connector, Black
T91
91-Pin Connector
370
Ground Connection 5 (in Main Wiring Harness)
384
Ground Connection on Left Front Side Member Type: VB, Slpdok:, Aim: VB684
D183
Connection 4 (87A) (in Engine/Motor Compartment Wiring Harness)
D197
Connection 5 (87A) (in Engine/Motor Compartment Wiring Harness)
*
Radiator Fan Connection
*2
Refer to Applicable Radiator Fan Wiring Diagram
*3
For Vehicles with a Parking Heater
*4
Omitted as a Running Change
*5
For Vehicles with 3-Door Equipment
*6
For Vehicles with 4-Door Equipment
*7
The Color of the Wires Depends on Vehicle Equipment
*8
For Vehicles with a Manual Transmission
*9
For Vehicles with 5-Door Equipment
