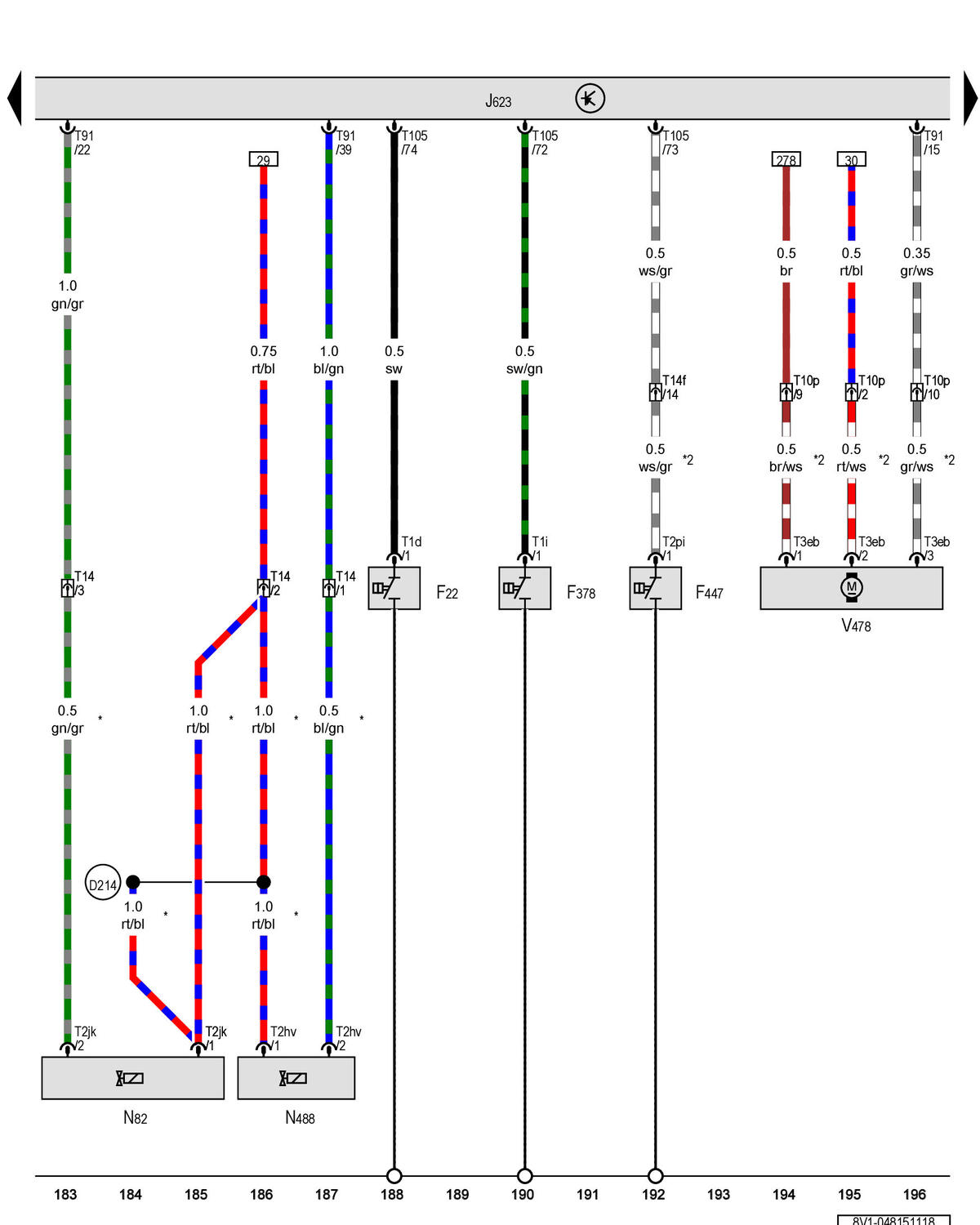

Oil Pressure Switch, Reduced Oil Pressure Switch, Engine/Motor Control Module, Coolant Shut-Off Valve, Transmission Coolant Valve
F22
Oil Pressure Switch Type: BT, Slpdok:, Aim: BTF22
F378
Reduced Oil Pressure Switch Type: BT, Slpdok:, Aim: BTF378
F447
Oil Pressure Switch, Level 3 Type: BT, Slpdok:, Aim: BTF447
J623
Engine/Motor Control Module Type: BT, Slpdok:, Aim: BTJ623
N82
Coolant Shut-Off Valve Type: BT, Slpdok:, Aim: BTN82
N488
Transmission Coolant Valve Type: BT, Slpdok:, Aim: BTN488
T1d
1-Pin Connector, Black
T1i
1-Pin Connector, Black
T2hv
2-Pin Connector
T2jk
2-Pin Connector
T2pi
2-Pin Connector, Black
T3eb
3-Pin Connector, Black
T10p
10-Pin Connector Type: BT, Slpdok:, Aim: BTT10p
T14
14-Pin Connector Type: BT, Slpdok:, Aim: BTT14
T14f
14-Pin Connector, In the Engine/Motor Compartment Type: BT, Slpdok:, Aim: BTT14f
T91
91-Pin Connector
T105
105-Pin Connector
V478
Transmission Fluid Cooling Pump
D214
Connection 8 (87A) (in Engine/Motor Compartment Wiring Harness)
*
Depending on Equipment
*2
The Color of the Wires Depends on Vehicle Equipment
