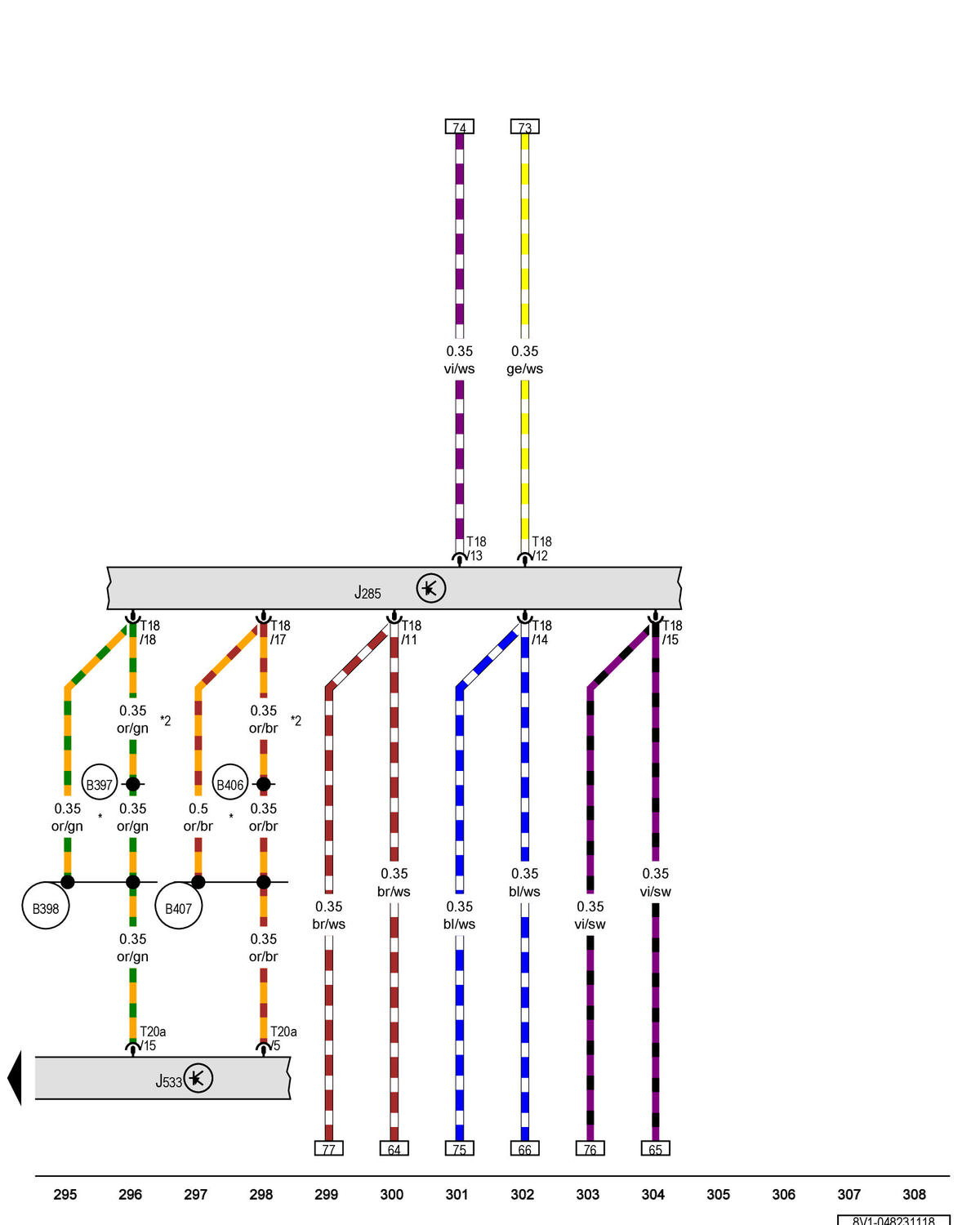

Instrument Cluster Control Module, Data Bus On Board Diagnostic Interface

Courtesy of AUDI OF AMERICA, LLC

J285

Instrument Cluster Control Module Type: BT, Slpdok:, Aim: BTJ285

J533

Data Bus on Board Diagnostic Interface

T18

18-Pin Connector

T20a

20-Pin Connector

B397

Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)

B398

Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)

B406

Comfort System CAN Bus Low Connection 1 (in Main Wiring Harness)

B407

Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)

*

For RHD Vehicles

*2

For LHD Vehicles
