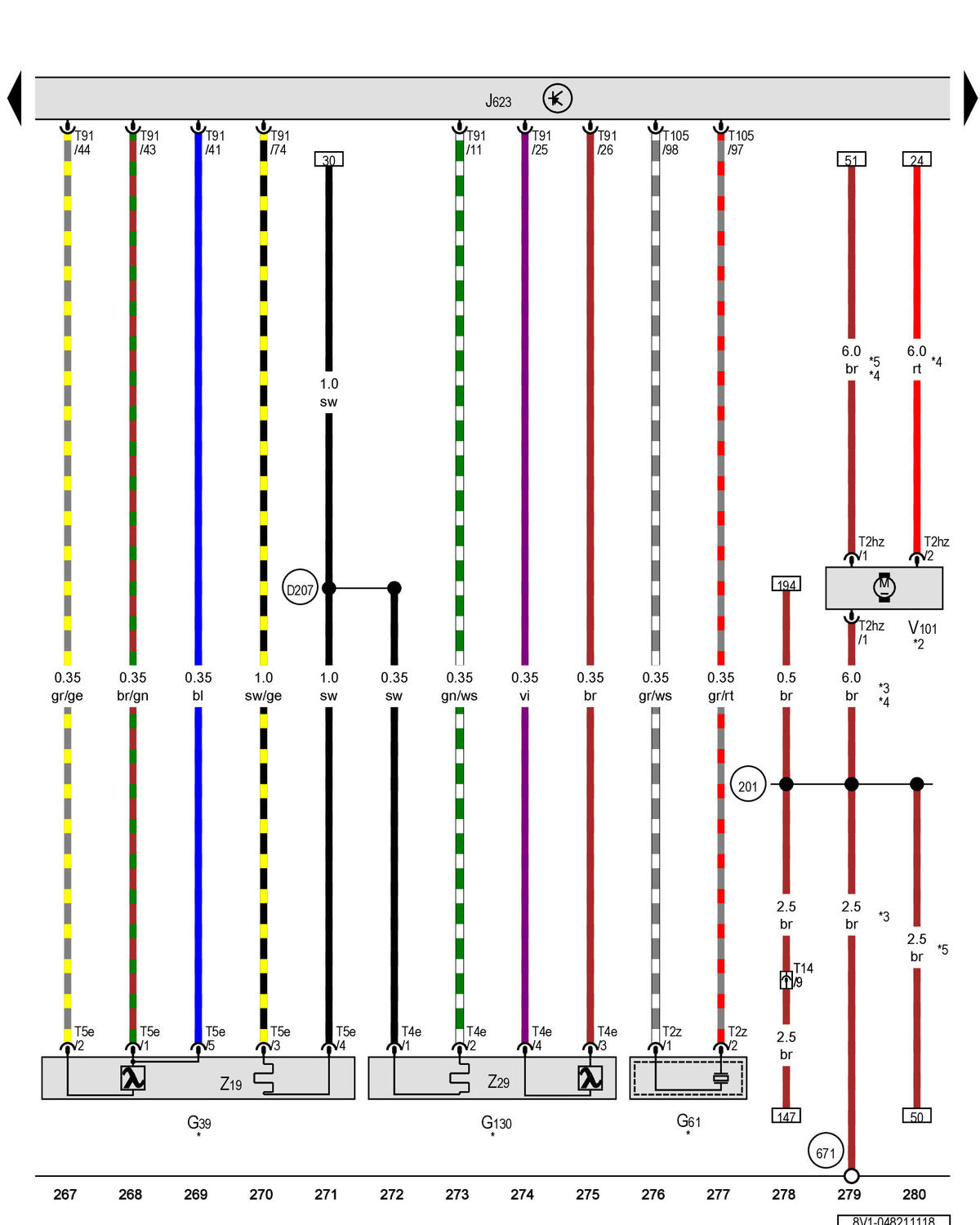

Heated Oxygen Sensor, Knock Sensor 1, Oxygen Sensor After Catalytic Converter, Engine/Motor Control Module, Secondary Air Injection Pump Motor

Courtesy of AUDI OF AMERICA, LLC

G39

Heated Oxygen Sensor Type: BT, Slpdok:, Aim: BTG39

G61

Knock Sensor 1 Type: BT, Slpdok:, Aim: BTG61

G130

Oxygen Sensor After Catalytic Converter Type: BT, Slpdok:, Aim: BTG130

J623

Engine/Motor Control Module Type: BT, Slpdok:, Aim: BTJ623

T2hz

2-Pin Connector

T2z

2-Pin Connector

T4e

4-Pin Connector

T5e

5-Pin Connector

T14

14-Pin Connector, Near the Left Front Longitudinal Member Type: BT, Slpdok:, Aim: BTT14

T91

91-Pin Connector

T105

105-Pin Connector

V101

Secondary Air Injection Pump Motor

Z19

Oxygen Sensor Heater Type: BT, Slpdok:, Aim: BTZ19

Z29

Heater for Oxygen Sensor 1 After Catalytic Converter Type: BT, Slpdok:, Aim: BTZ29

201

Ground Connection 5 (in Engine/Motor Compartment Wiring Harness)

671

Ground Connection 1 on Left Front Longitudinal Member Type: VB, Slpdok:, Aim: VB671

D207

Connection 7 (87A) (in Engine/Motor Compartment Wiring Harness)

*

Pre-Wired Component

*2

For Vehicles with US Equipment

*3

Omitted as a Running Change

*4

Diameter Depends on Equipment

*5

Running Change
