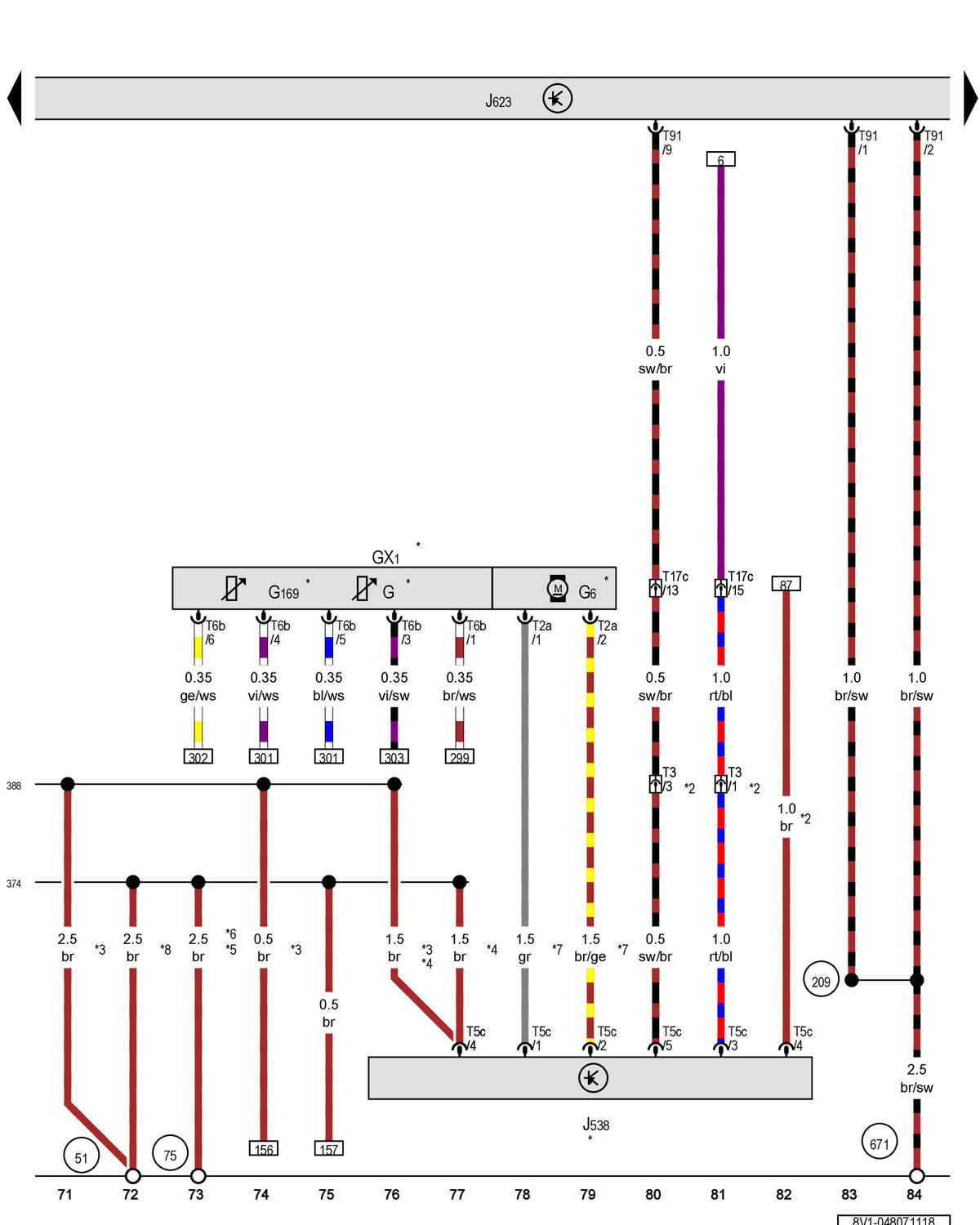

Fuel Level Sensor, Fuel Delivery Unit, Engine/Motor Control Module
G
Fuel Level Sensor
GX1
Fuel Delivery Unit
G6
Transfer Fuel Pump
G169
Fuel Level Sensor 2
J538
Fuel Pump Control Module Type: BT, Slpdok:, Aim: BTJ538
J623
Engine/Motor Control Module Type: BT, Slpdok:, Aim: BTJ623
T2a
2-Pin Connector
T3
3-Pin Connector
T5c
5-Pin Connector
T6b
6-Pin Connector
T17c
17-Pin Connector Type: BT, Slpdok:, Aim: BTT17c
T91
91-Pin Connector
51
Ground Connection in Luggage Compartment, Right Type: VB, Slpdok:, Aim: VB51
75
Ground Connection on Right Rear Pillar Type: VB, Slpdok:, Aim: VB75
206
Ground Connection 6 (in Engine/Motor Compartment Wiring Harness)
374
Ground Connection 9 (in Main Wiring Harness)
388
Ground Connection 23 (in Main Wiring Harness)
671
Ground Connection 1 on Left Front Longitudinal Member Type: VB, Slpdok:, Aim: VB671
*
For AWD Vehicles
*2
For Vehicles with a Parking Heater
*3
For Convertible
*4
For Vehicles Without Parking Heater
*5
For Vehicles with 3-Door Equipment
*6
For Vehicles with 5-Door Equipment
*7
The Color of the Wires Depends on Vehicle Equipment
*8
For Vehicles with 4-Door Equipment
