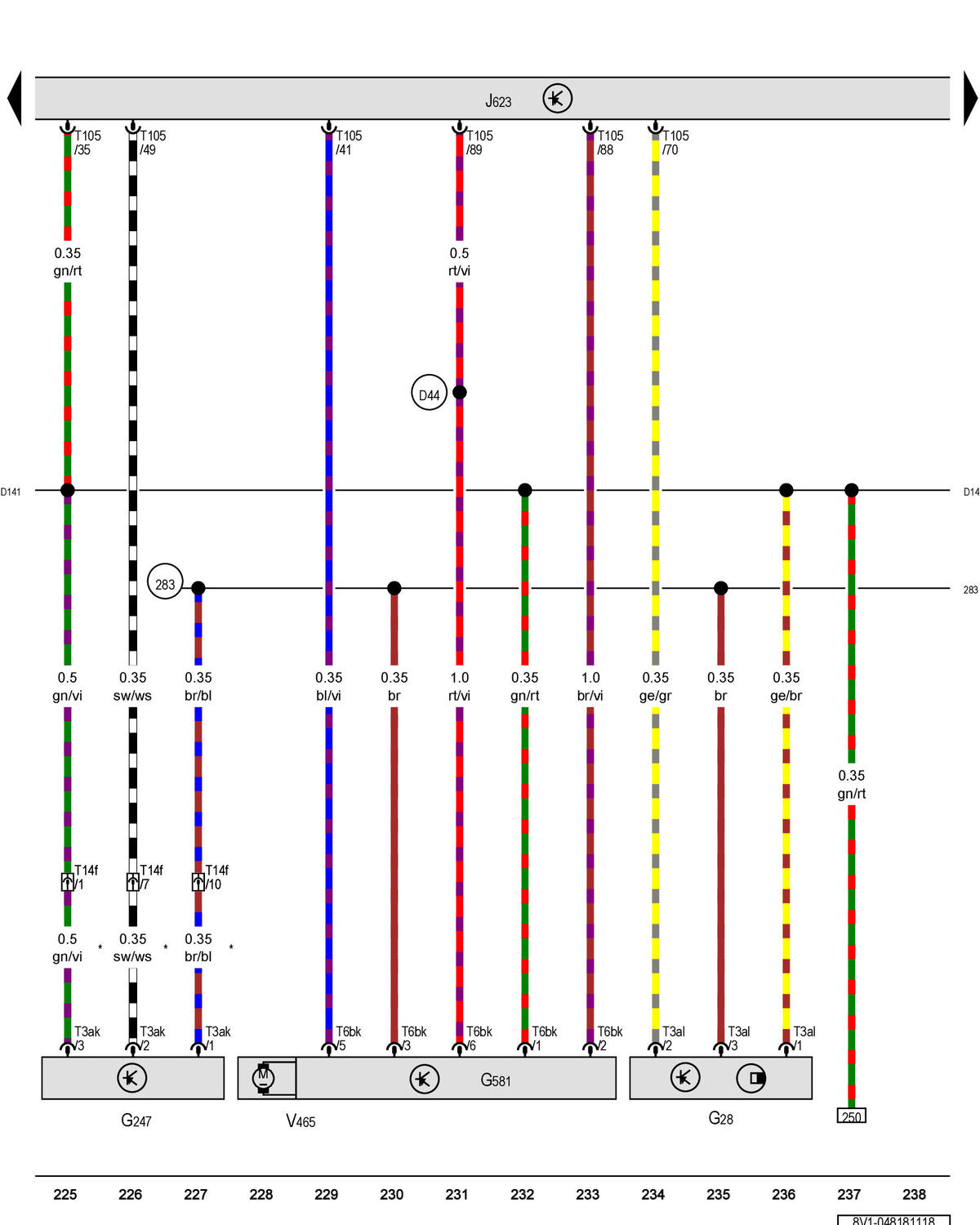

Engine Speed Sensor, Fuel Pressure Sensor, Engine/Motor Control Module, Charge Air Pressure Actuator
G28
Engine Speed Sensor Type: BT, Slpdok:, Aim: BTG28
G247
Fuel Pressure Sensor Type: BT, Slpdok:, Aim: BTG247
G581
Charge Air Pressure Actuator Position Sensor Type: BT, Slpdok:, Aim: BTG581
J623
Engine/Motor Control Module Type: BT, Slpdok:, Aim: BTJ623
T3ak
3-Pin Connector, Black
T3al
3-Pin Connector, Black
T6bk
6-Pin Connector, Gray
T14f
14-Pin Connector, In the Engine/Motor Compartment Type: BT, Slpdok:, Aim: BTT14f
T105
105-Pin Connector
V465
Charge Air Pressure Actuator Type: BT, Slpdok:, Aim: BTV465
283
Ground Connection 2 (in Engine Pre-Wiring Harness)
D44
Connection 6 (in Engine Pre-Wiring Harness)
D141
Connection 5V (in Engine Pre-Wiring Harness)
*
The Color of the Wires Depends on Vehicle Equipment
