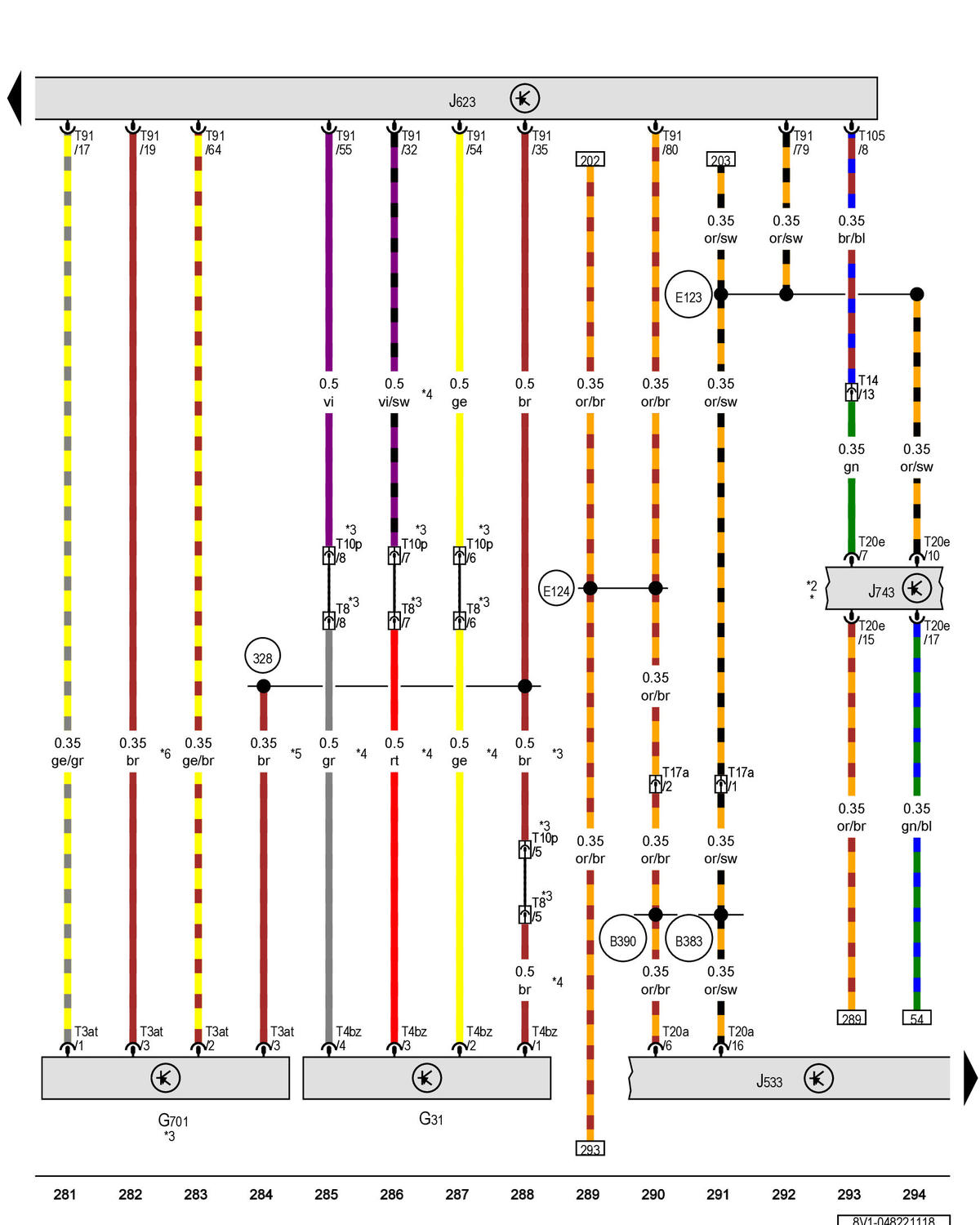

Charge Air Pressure Sensor, Transmission Neutral Position Sensor, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module, Dual-Clutch Transmission MECHATRONIC

Courtesy of AUDI OF AMERICA, LLC

G31

Charge Air Pressure Sensor Type: BT, Slpdok:, Aim: BTG31

G701

Transmission Neutral Position Sensor

J533

Data Bus on Board Diagnostic Interface

J623

Engine/Motor Control Module Type: BT, Slpdok:, Aim: BTJ623

J743

Dual-Clutch Transmission Mechatronic Type: BT, Slpdok:, Aim: BTJ743

T3at

3-Pin Connector, Black

T4bz

4-Pin Connector, Black

8-Pin Connector Type: BT, Slpdok:, Aim: BTT8

T10p

10-Pin Connector Type: BT, Slpdok:, Aim: BTT10p

T14

14-Pin Connector Type: BT, Slpdok:, Aim: BTT14

T17a

17-Pin Connector Type: BT, Slpdok:, Aim: BTT17a

T20a

20-Pin Connector

T20e

20-Pin Connector

T91

91-Pin Connector

T105

105-Pin Connector

328

Sensor Ground Connection 2 (in Engine/Motor Compartment Wiring Harness)

B383

Powertrain CAN Bus High Connection 1 (in Main Wiring Harness)

B390

Powertrain CAN Bus Low Connection 1 (in Main Wiring Harness)

E123

CAN Bus Drive High Connection 1 (in Engine Wiring Harness)

E124

CAN Bus Drive Low Connection 1 (in Engine Wiring Harness)

For Vehicles with Automatic Transmission (DSG)

Refer to Applicable Wiring Diagram

Depending on Equipment

The Color of the Wires Depends on Vehicle Equipment

Omitted as a Running Change

Running Change
