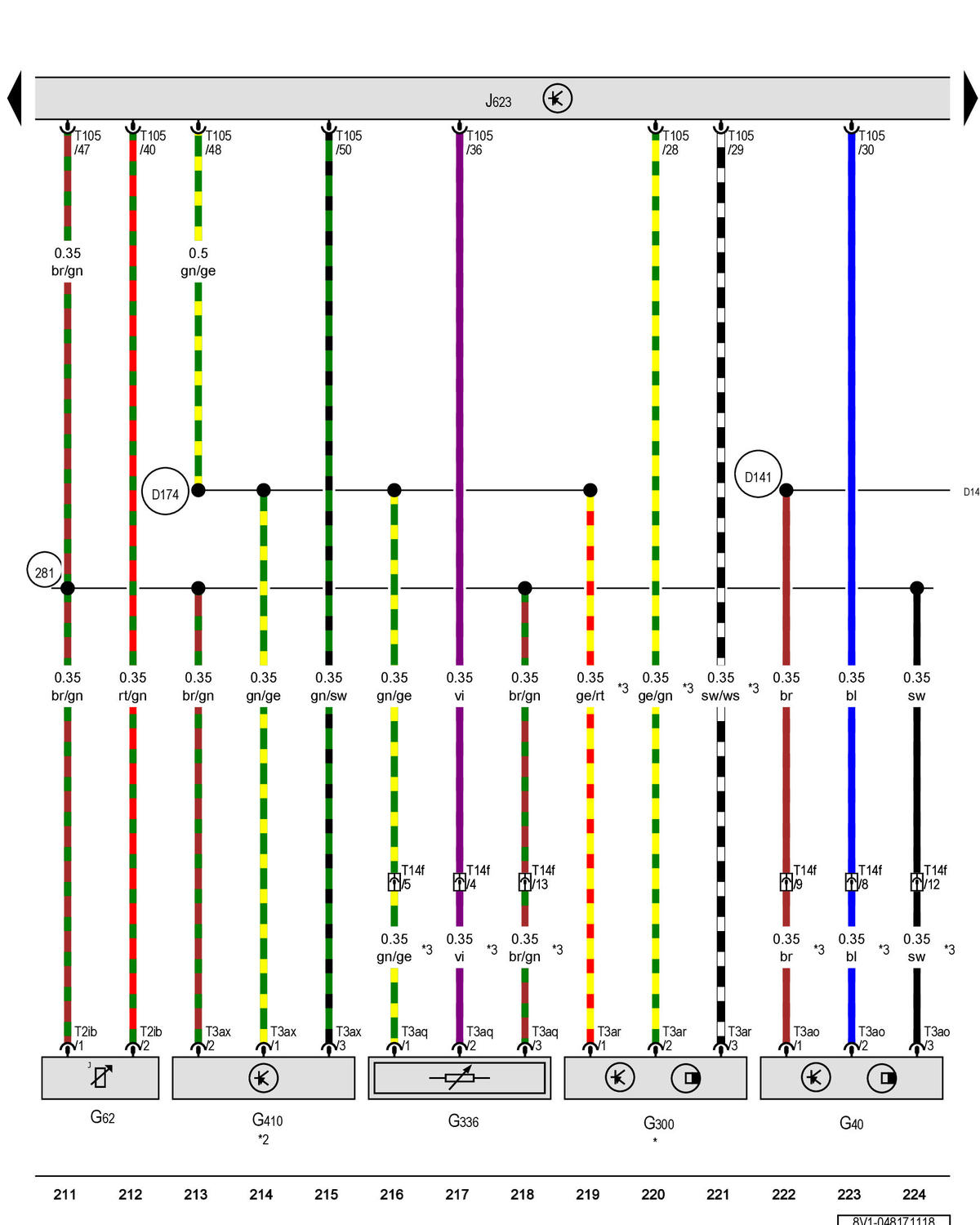

Camshaft Position Sensor, Engine Coolant Temperature Sensor, Camshaft Position Sensor 3, Intake Manifold Runner Position Sensor, Engine/Motor Control Module
G40
Camshaft Position Sensor Type: BT, Slpdok:, Aim: BTG40
G62
Engine Coolant Temperature Sensor Type: BT, Slpdok:, Aim: BTG62
G300
Camshaft Position Sensor 3 Type: BT, Slpdok:, Aim: BTG300
G336
Intake Manifold Runner Position Sensor Type: BT, Slpdok:, Aim: BTG336
G410
Low Fuel Pressure Sensor Type: BT, Slpdok:, Aim: BTG410
J623
Engine/Motor Control Module Type: BT, Slpdok:, Aim: BTJ623
T2ib
2-Pin Connector, Black
T3ao
3-Pin Connector, Black
T3aq
3-Pin Connector
T3ar
3-Pin Connector
T3ax
3-Pin Connector
T14f
14-Pin Connector, In the Engine/Motor Compartment Type: BT, Slpdok:, Aim: BTT14f
T105
105-Pin Connector
281
Ground Connection 1 (in Engine Pre-Wiring Harness)
D141
Connection 5V (in Engine Pre-Wiring Harness)
D174
Connection 2 (5V) (in Engine Pre-Wiring Harness)
*
For Vehicles Without US Equipment
*2
Depending on Equipment
*3
The Color of the Wires Depends on Vehicle Equipment
