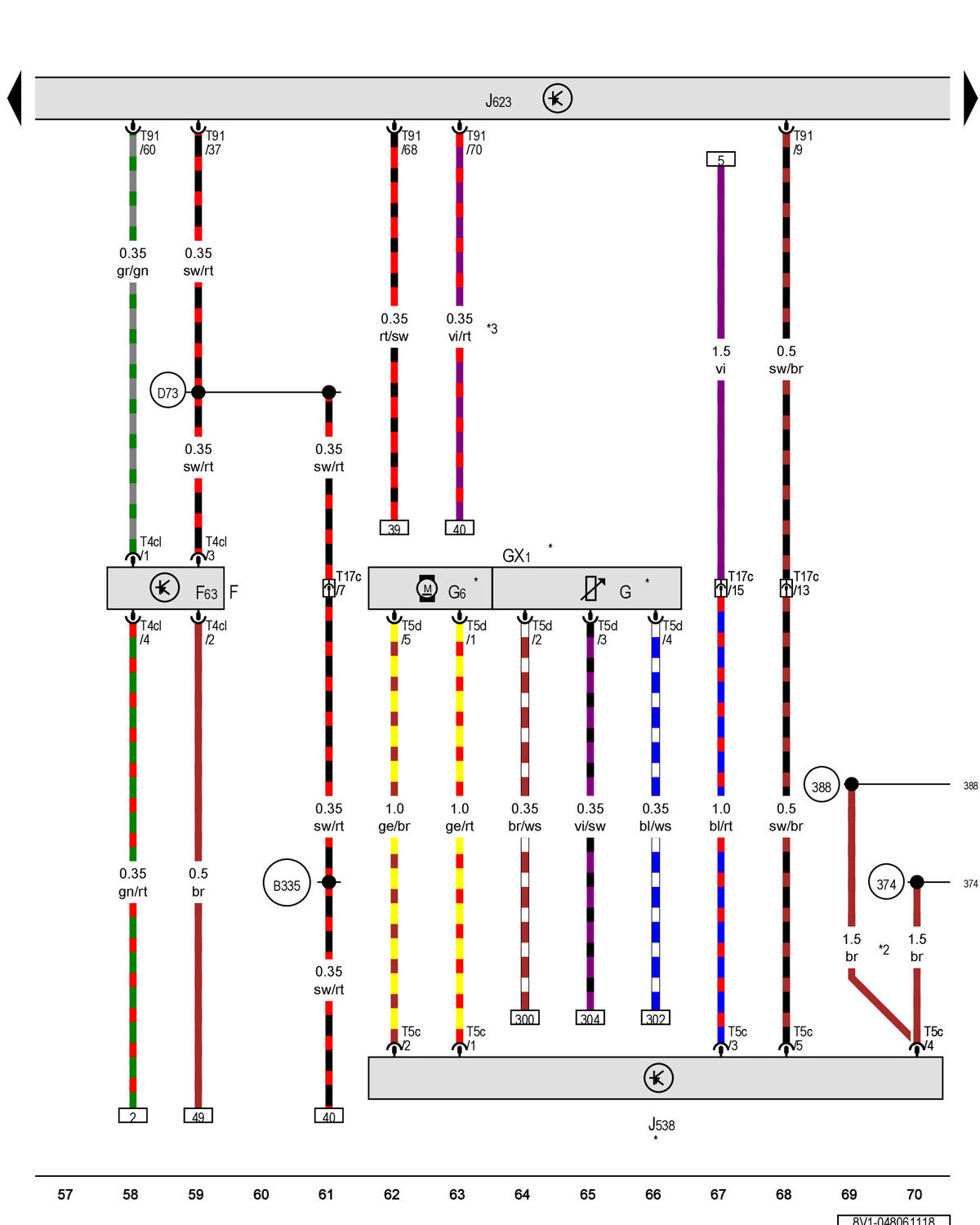

Brake Lamp Switch, Brake Pedal Switch, Fuel Level Sensor, Fuel Delivery Unit, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

F

Brake Lamp Switch Type: BT, Slpdok:, Aim: BTF

F63

Brake Pedal Switch Type: BT, Slpdok:, Aim: BTF63

G

Fuel Level Sensor

GX1

Fuel Delivery Unit

G6

Transfer Fuel Pump

J538

Fuel Pump Control Module Type: BT, Slpdok:, Aim: BTJ538

J623

Engine/Motor Control Module Type: BT, Slpdok:, Aim: BTJ623

T4cl

4-Pin Connector, Black

T5c

5-Pin Connector

T5d

5-Pin Connector

T17c

17-Pin Connector Type: BT, Slpdok:, Aim: BTT17c

T91

91-Pin Connector

374

Ground Connection 9 (in Main Wiring Harness)

388

Ground Connection 23 (in Main Wiring Harness)

B335

Connection 54 (in Main Wiring Harness) 1

D73

Positive Connection (54) (in Engine/Motor Compartment Wiring Harness)

*

For FWD vehicles

*2

For Convertible

*3

For Vehicles with Cruise Control System
