Comp. LOC: Fuses
>>

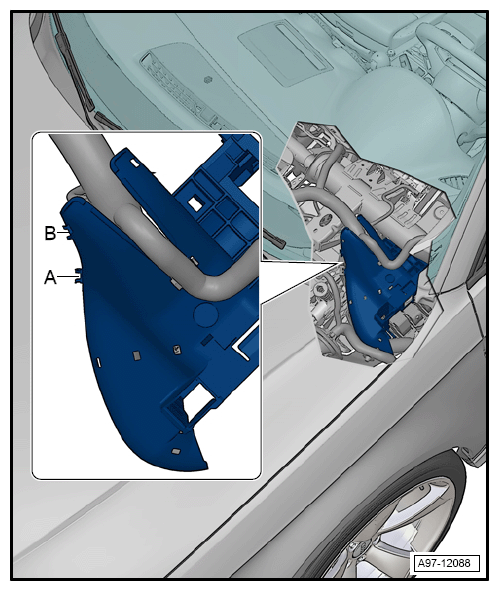

Fuse Panel On Vehicle Electrical System Control Module -J519-, Left-Hand Drive
Fuse Panel On Vehicle Electrical System Control Module -J519-, Left-Hand Drive
Courtesy of AUDI OF AMERICA, LLC
A - Front Passenger's Power Seat Adjustment Circuit Breaker 1 -S46- - 15 A
B - Ignore
Courtesy of AUDI OF AMERICA, LLC
