Fuse Panel In Main Fuse Panel Luggage Compartment, With RS3, Through October 2016

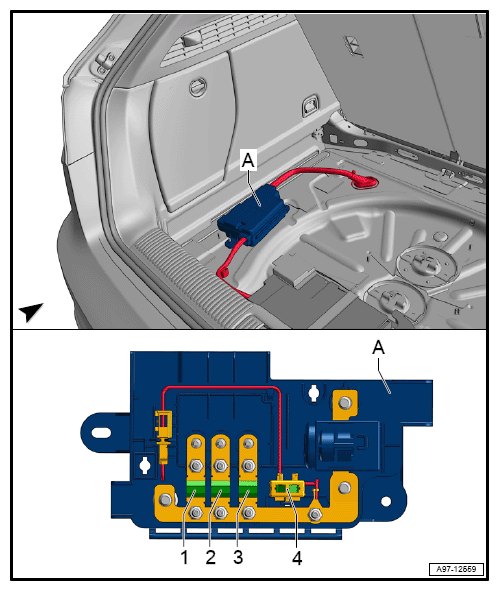

G12759646Courtesy of AUDI OF AMERICA, LLC
  1. A - Fuse Panel In Main Fuse Panel Luggage Compartment
  2. 1 - Safety Fuse 3 -S133-
  3. 2 - Safety Fuse 2 -S132-
  4. 3 - Safety Fuse 1 -S131-
  5. 4 - Fuse 1 in Fuse Panel -S1-
