Fuse Panel In Main Fuse Panel Luggage Compartment, With RS3, From November 2016

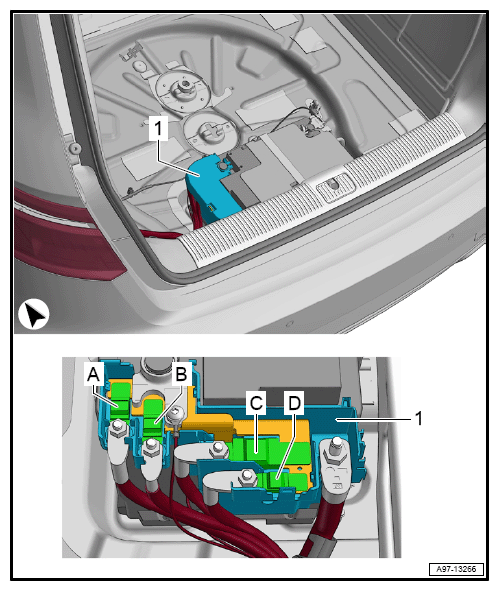

G12759647Courtesy of AUDI OF AMERICA, LLC
  1. 1 - Fuse Panel In Main Fuse Panel Luggage Compartment
  2. A - Safety Fuse 1 -S131-
  3. B - Safety Fuse 2 -S132-
  4. C - Ignore
  5. D - Safety Fuse 3 -S133-
