Overview - Front Wheel Spoiler, RS3 SPORTBACK

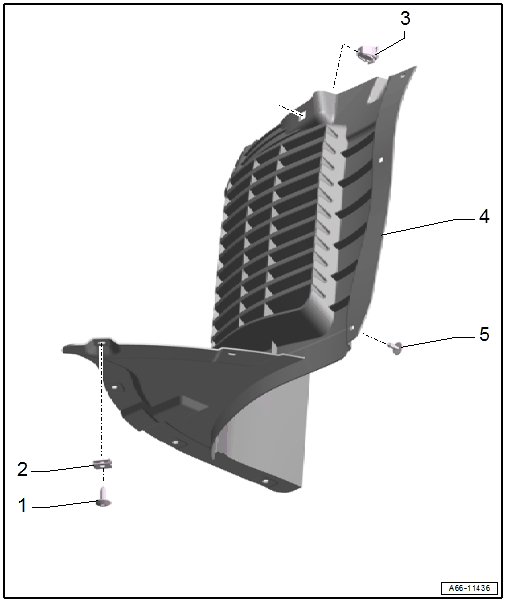

Fig 1: Exploded View Of Front Wheel Spoiler (RS3)

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • 2 Nm
   • Quantity: 2
2. Metal Nut
   • Quantity: 4
3. Plastic Nut
   • Quantity: 2
4. Front Wheel Spoiler
   • Removing and Installing. Refer to FRONT WHEEL SPOILER, REMOVING AND INSTALLING, RS3 SPORTBACK .
5. Bolt
   • 2 Nm
   • Quantity: 2
