Overview - Front Wheel Housing Liner, RS3 SPORTBACK

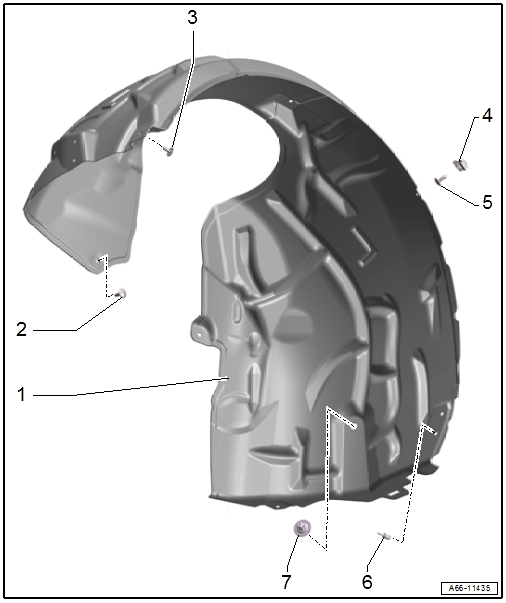

Fig 1: Exploded View Of front Wheel Housing Liner (RS3)

Courtesy of AUDI OF AMERICA, LLC

1. Front Wheel Housing Liner
   • Removing and Installing. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .
2. Bolt
   • 2 Nm
   • Quantity: 9
3. Bolt
   • 2 Nm
4. Bracket
   • For the wheel housing liner to the fender
   • Quantity: 2
5. Bolt
   • 2 Nm
   • Quantity: 2
6. Expanding Rivet
   • Quantity: 2
7. Nut
   • 2 Nm
