Roof Trim Molding, Removing And Installing, Without Gloss Package: Removing

NOTE:

Do not bend the roof trim molding.

-- Open the front door.

-- So that the paint is not damaged, tape off the area around the roof trim molding on the A-pillar using adhesive tape -2-.

GWWA66-11003Courtesy of AUDI OF AMERICA, LLC

-- Pry up the roof trim molding -1- with a : T10383/1  , from the A-pillar beginning from the clips in the direction of -arrow-.

-- Have a second technician hold the roof trim molding -1- so that the paint is not damaged.

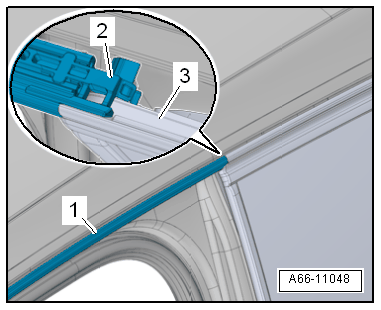

GWWA66-11048Courtesy of AUDI OF AMERICA, LLC

-- Disengage the roof trim molding mount -2- from the rear side window pins -3-.

-- Remove the roof trim molding.
