Overview - A-/B-Pillar Trim

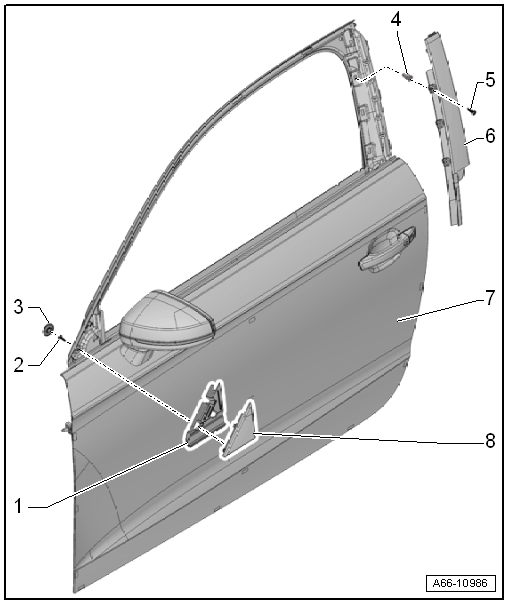

Fig 1: Exploded View Of A-/B-Pillar Trim

Courtesy of AUDI OF AMERICA, LLC

Seal
- For the A-pillar trim
Bolt
- 2.5 Nm
Cover
Clip Nut
- Quantity: 3
Bolt
- 2.5 Nm
- Quantity: 3
Door B-pillar Trim
- Removing and installing. Refer to FRONT DOOR B-PILLAR TRIM, REMOVING AND INSTALLING
Door
A-Pillar Trim
- Removing and installing. Refer to A-PILLAR TRIM, REMOVING AND INSTALLING .
