Glass Panel, Removing And Installing

• To complete the procedure, a second technician is required to be at the following position. Refer to "With a second technician, lift the cover from the slotted guide rail guides." GLASS PANEL, REMOVING AND INSTALLING - With a second technician, lift the cover from the slotted guide rail guides. .

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • 5.5 Nm
2. Slotted Guide Rail
3. Glass Panel
   • Use the markings -arrow- for the rear height adjustment. Refer to GLASS PANEL, ADJUSTING .
   • Perform the adaptation after installing
4. Bolt
   • 5.5 Nm

Glass Panel, Removing

Courtesy of AUDI OF AMERICA, LLC

-- Open the cover approximately 150 mm rearward.

-- Remove the left and right bolts from the back of the cover -arrow-.

Courtesy of AUDI OF AMERICA, LLC

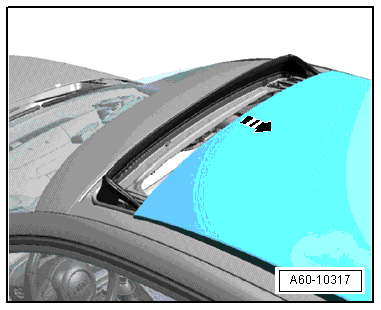

-- With a suitable material (cloth rag, paper etc.) close the opening between the A-pillar and the sunroof frame, that way if necessary bolts do not fall in the vehicle.

-- Remove the front bolt -arrow- from the cover on the left and right.

Courtesy of AUDI OF AMERICA, LLC

-- Only loosen the bolt in the center of the cover -arrow-.

Courtesy of AUDI OF AMERICA, LLC

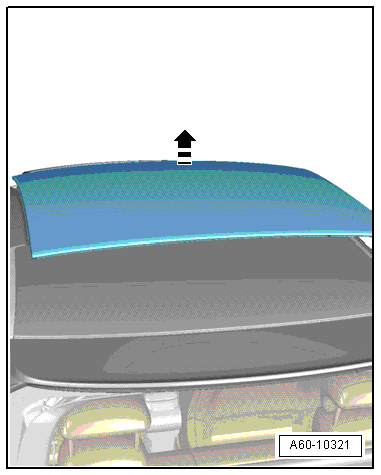

-- With a second technician, lift the cover from the slotted guide rail guides.

Courtesy of AUDI OF AMERICA, LLC

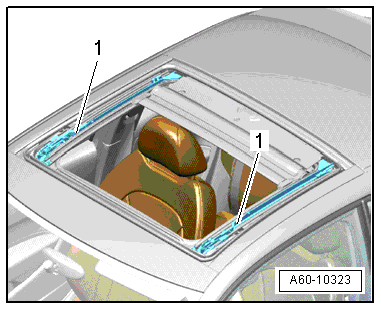

Drive the slotted guide rails -1- into the >>roof closed<< position.

Courtesy of AUDI OF AMERICA, LLC

Installing

-- Open the slotted guide rail guides approximately 150 mm rearward.

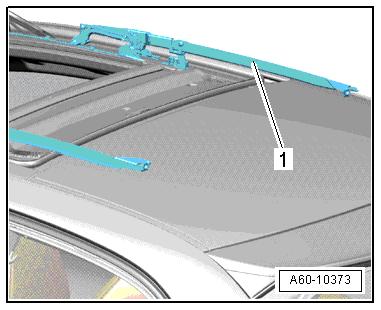

-- With a second technician, place the cover on the slotted guide rail guides -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Place the cover frame with the opening -arrow- over the loosened bolts.

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts first in the front then the rear, and finally in the center.

-- Close the cover and check the position to the roof.

-- If necessary open and adjust the cover.

-- Tighten the bolts to the tightening specification.
