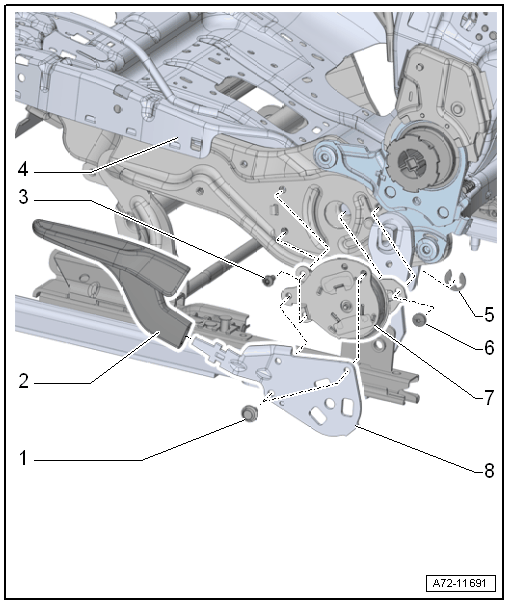

Overview - Seat Pan, Seat Height Adjustment
- Bolts
- Quantity: 2
- 7.5 Nm
- Seat Height Adjustment Handle
- Removing and Installing. Refer to SEAT HEIGHT ADJUSTER, REMOVING AND INSTALLING .
- The tabs must engage in the notch on the lever.
- Bolts
- Quantity: 2
- Note the different bolt length -item 6-
- 6.5 Nm
- Seat Pan
- Lock Washer
- Always replace after removing
- Bolt
- Note the different bolt lengths -item 3-
- 10 Nm
- Seat Height Adjustment
- Removing and Installing. Refer to SEAT HEIGHT ADJUSTER, REMOVING AND INSTALLING .
- Lever for Seat Height Adjustment
- With the tab for locking the seat height adjustment handle.
