Adjustment Dimensions, Sedan

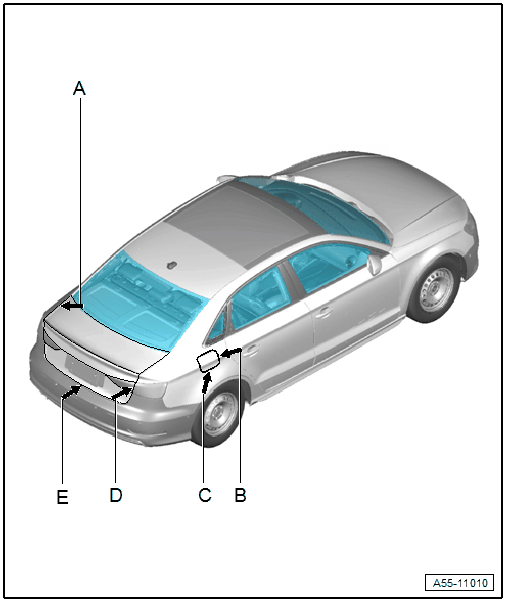

Fig 1: Gap Dimensions Of Body (3 Of 3)

GWWA55-11010

Courtesy of AUDI OF AMERICA, LLC

In -A- area = 3.5 mm ± 0.5 mm
In -B- area = 2.5 mm ± 0.5 mm
In -C- area = 2.5 mm ± 0.5 mm
In -D- area = 3.5 mm ± 0.5 mm
In -E- area = 5 mm ± 0.5 mm
