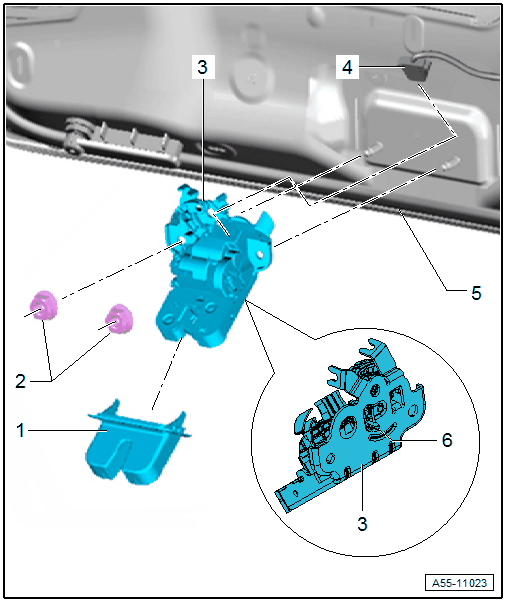

Latch, Removing And Installing
- Rear Lid Latch Cap
- Removed with the rear lid trim panel
- Nut
- 21 Nm
- Latch
- Removing
-- Remove the rear lid trim panel. Refer to Luggage Compartment Trim Panels .
-- Disconnect the connector.
-- Remove nuts and remove the latch.
-- Remove the lid latch with the clip from the centering hole.
- Installing
- Attach the lid lock with center guide on the rear lid and tighten the nuts to the tightening specification.
- Removing
- Wiring Harness
- Rear Lid
- Clip
- For centering the latch
