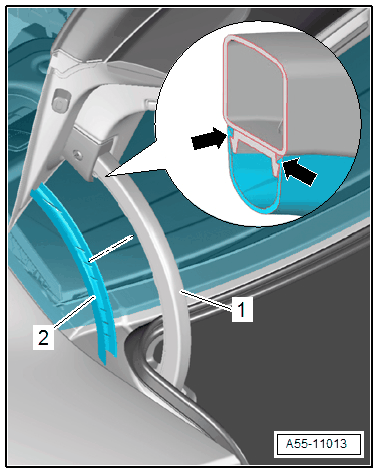

Lid Hinge Cover, Installing

Courtesy of AUDI OF AMERICA, LLC

-- When pushing in, the cover -2- must engage to the entire length of the cable guide on the hinge -1- -arrows-.

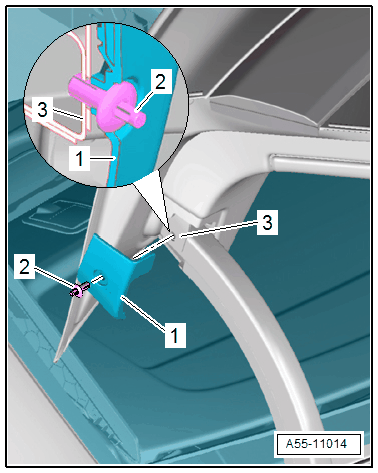

Rear Lid Hinge End Plate

Courtesy of AUDI OF AMERICA, LLC

-- Push the retainers from the end plate -1- under the rear lid trim.

-- Secure the end plate with the clip -2- through the mounting holes in the hinge -3- and push in the spreader pin.
