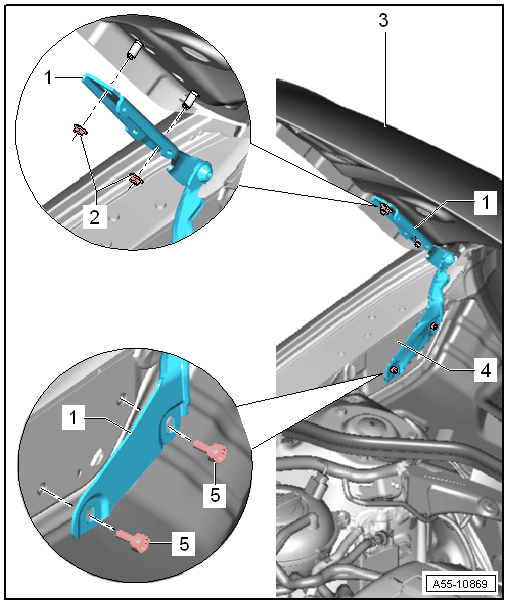

Hinges, Removing And Installing, Without Pedestrian Protection
- Hood Hinge
- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING
.
-- Before removing, mark the position of the hinge on the hood and body.
-- Before removing a hinge, support the lid or secure it against falling.
-- Remove the nuts from the hood and the body and lift out the hinge.
- Install in reverse order of removal.
-- Install and fasten the hinge according to the markings.
- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING
.
- Nut
- 25 Nm
- Hood
- Fender Flange
- Bolt
- 25 Nm
