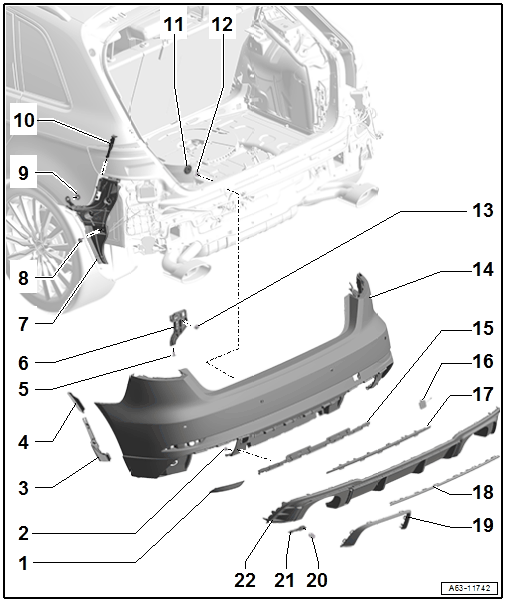

Overview - Bumper Cover, RS3 From My 2019
- Rear Reflector
- Removing and Installing. Refer to REFLECTOR, REMOVING AND INSTALLING .
- Bolt
- 2 Nm
- Quantity: 4
- Cover
- Wheel Housing Extension
- Removing and Installing. Refer to WHEEL HOUSING EXTENSION, REMOVING AND INSTALLING, RS3 FROM MY 2019 .
- Bolt
- 2 Nm
- Mount
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
- Side Mount
- For the bumper cover
- Removing and Installing. Refer to SIDE BUMPER COVER MOUNT, REMOVING AND INSTALLING, A3 AND SPORTBACK .
- Bolt
- Tightening sequence. Refer to Figure.
- Quantity: 4
- Nut
- Tightening sequence. Refer to Figure.
- Locking Mechanism
- For attaching the rear bumper cover to the upper mount
- Cover
- Quantity: 4
- Nut
- 5 Nm
- Quantity: 4
- Nut
- 2 Nm
- Quantity: 2
- Rear Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Bracket
- Cover
- For the towing eye
- Adapter
- Trim Molding
- For the bumper cover lower section
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION TRIM MOLDING, REMOVING AND INSTALLING, RS3 .
- Trim Molding
- For the tail pipe
- Removing and Installing. Refer to TAIL PIPE TRIM MOLDING, REMOVING AND INSTALLING, RS3 .
- Expanding Rivet
- Bracket
- Bumper Cover Lower Section
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, RS3 FROM MY 2019 .
