Adjustment Dimensions, Vehicles from MY 2017

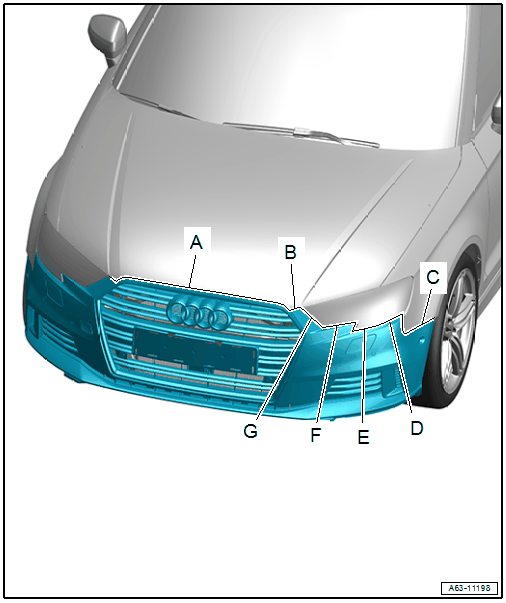

GWWA63-11198Courtesy of AUDI OF AMERICA, LLC
  1. A -

    Radiator Grille/Hood Bumper Cover

    • Gap dimension = 4.5 mm
  2. B -

    Bumper Cover to Front Lid

    • Gap dimension = 4.6 mm
  3. C -

    Bumper Cover Side Piece to Fender

    • Gap dimension = 0 mm
  4. D -

    Bumper Cover to Headlamps

    • Gap dimension = 1.94 mm
  5. E -

    Bumper Cover to Headlamps

    • Gap dimension = 1.84 mm
  6. F -

    Bumper Cover to Headlamps

    • Gap dimension = 1.49 mm
  7. G -

    Bumper Cover to Headlamps

    • Gap dimension = 2.0 mm
