Component Location Overview - Instrument Panel Controls

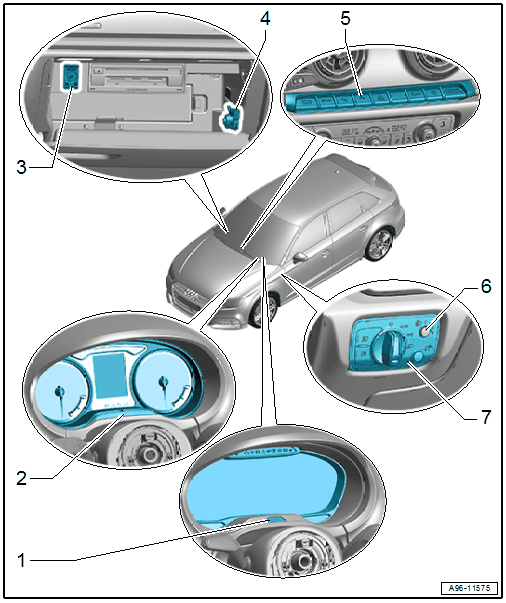

Fig 1: Locating Instrument Panel Controls

Courtesy of AUDI OF AMERICA, LLC

1. Instrument Cluster Operation Button -E493-
   • For vehicles from MY 2017
   • Removing and installing. Refer to Instrument Cluster Operation Button -E493-, REMOVING AND INSTALLING .
2. Instrument Cluster Operation Button -E493-
   • For vehicles through MY 2016
   • Cannot be replaced separately if faulty.
   • Removing and installing. Refer to INSTRUMENT CLUSTER WITH Instrument Cluster Control Module -J285-, REMOVING AND INSTALLING, LOW INSTRUMENT CLUSTER .
3. Front Passenger Airbag Deactivation Key Switch -E224-
   • Overview. Refer to FRONT PASSENGER AIRBAG .
4. Glove Compartment Lamp Switch -E26-
   • Removing and installing. Refer to Glove Compartment Lamp Switch -E26-, REMOVING AND INSTALLING .
5. Switch Module in Instrument Panel, Center -EX22-
   • With:
     • Emergency Flasher Button -E229-
     • ASR/ESP Button -E256-
     • Parking Aid Button -E266-
     • Parallel Parking Assistance Button -E581-
     • Front Display Open/Close Button -E462-
     • Driving Profile Selection Button -E735-
     • Start/Stop Mode Button -E693-
     • Front Passenger Airbag -Disabled- Indicator Lamp -K145-
   • Removing and Installing. Refer to BUTTONS IN INSTRUMENT PANEL, REMOVING AND INSTALLING .
6. Headlamp Range Control Adjuster -E102-
   • Removing and installing. Refer to Headlamp Range Control Adjuster -E102-, REMOVING AND INSTALLING .
7. Light Switch -E1-
   • With instrument panel and switch illumination dimmer switch, rear fog lamp button
   • Vehicle equipment version with fog lamp button
   • Removing and installing. Refer to Light Switch -E1-, REMOVING AND INSTALLING .
