Component Location Overview - Sound System, 5-Door Vehicles

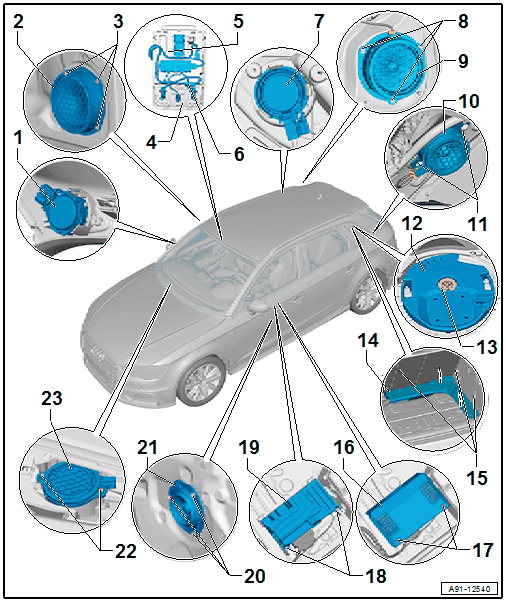

Fig 1: Component Location Overview - Sound System, 5-Door Vehicles

Courtesy of AUDI OF AMERICA, LLC

1. Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22-
   • Removing and installing. Refer to Left & Right FRONT TREBLE SPEAKER -R20- / -R22-, REMOVING AND INSTALLING .
2. Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23-
   • Removing and installing. Refer to Left & Right FRONT BASS SPEAKER -R21- / -R23-, REMOVING AND INSTALLING .
3. Bolt
   • 3 Nm
   • Quantity: 3
4. Front Interior Lamp -W1-
5. 4-Pin Connector -T4-
6. Interior Microphone -R74-
   • Overview. Refer to OVERVIEW - MICROPHONE UNIT .
   • Removing and installing. Refer to MICROPHONE UNIT IN FRONT ROOF MODULE -R164-, REMOVING AND INSTALLING .
7. Left Rear Treble Speaker -R14- /Right Rear Treble Speaker -R16-
   • Removing and installing. Refer to LEFT/RIGHT REAR TREBLE SPEAKER -R14- / -R16-, REMOVING AND INSTALLING, 5-DOOR VEHICLES AND SEDAN .
8. Bolt
   • 3 Nm
   • Quantity: 3
9. Left Rear Bass Speaker -R15- /Right Rear Bass Speaker -R17-
   • Removing and installing. Refer to LEFT/RIGHT REAR BASS SPEAKER -R15- / -R17-, REMOVING AND INSTALLING, 5-DOOR VEHICLES AND SEDAN .
10. Left Effects Speaker -R209- /Right Effects Speaker -R210-
    • Removing and installing. Refer to LEFT/RIGHT EFFECTS SPEAKER -R209- / -R210-, REMOVING AND INSTALLING, 5-DOOR VEHICLES .
11. Bolt
    • 3 Nm
    • Quantity: 2
12. Subwoofer -R211-
    • Not with Audi g-tron and Audi e-tron
    • Removing and installing. Refer to SUBWOOFER -R211-, REMOVING AND INSTALLING .
13. Bolt
    • Outside of production in China: 10 Nm
    • Only production in China: 5 Nm
    • Not with Audi g-tron and Audi e-tron
14. Subwoofer -R211-
    • Only with Audi g-tron and Audi e-tron
    • Removing and installing. Refer to SUBWOOFER -R211-, REMOVING AND INSTALLING .
15. Nut
    • 4 Nm
    • Quantity: 3
    • Only with Audi g-tron and Audi e-tron
16. Cover
17. Expanding Rivet
    • Quantity: 2
18. Bolt
    • 3 Nm
    • Quantity: 2
19. Digital Sound System Control Module -J525-
    • Connector Assignment. Refer to CONNECTOR ASSIGNMENTS .
    • Removing and installing. Refer to CONTROL MODULE/DIGITAL SOUND SYSTEM AMPLIFIER, REMOVING AND INSTALLING .
20. Bolt
    • 3 Nm
    • Quantity: 3
21. Left Front Midrange Speaker -R103- /Right Front Midrange Speaker -R104-
    • Removing and installing. Refer to FRONT MIDRANGE SPEAKER, REMOVING AND INSTALLING .
22. Bolt
    • 2 Nm
    • Quantity: 2
23. Center Speaker -R208-
    • Removing and installing. Refer to CENTER SPEAKER, REMOVING AND INSTALLING .
