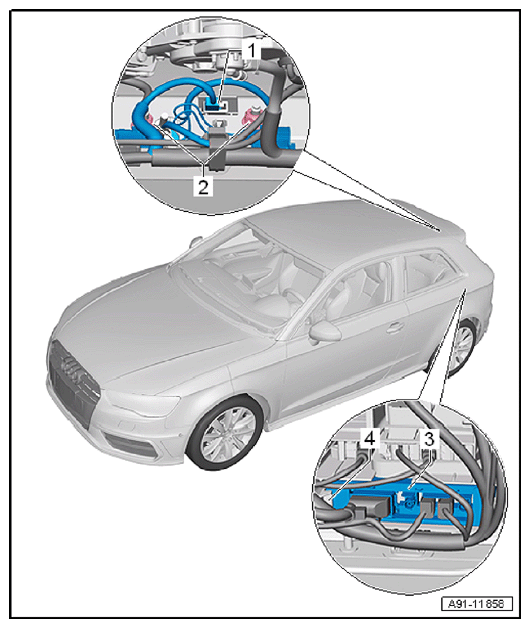

Component Location Overview - Rearview Camera System, 3-Door And 5-Door Vehicles, Through My 2016

• Removing and installing. Refer to 8.3.1 Rearview Camera - R189-, Removing and Installing, 3- and 5-Door Vehicles

  .

• Calibrating. Refer to 8.4 Rearview Camera System, Calibrating

.

• 6 Nm
• Quantity: 2

• Rearview Camera System Control Module - J772-

  Connector Assignment. Refer to 8.6.1 Rearview Camera System Control Module - J772- Connectors, through MY 2016  .

• Removing and installing. Refer to 8.5.1 Rearview Camera System Control Module - J772-, Removing and Installing, 3-Door and 5-Door Vehicles, through MY 2016

  .

• Calibrating. Refer to 8.4 Rearview Camera System, Calibrating

.
