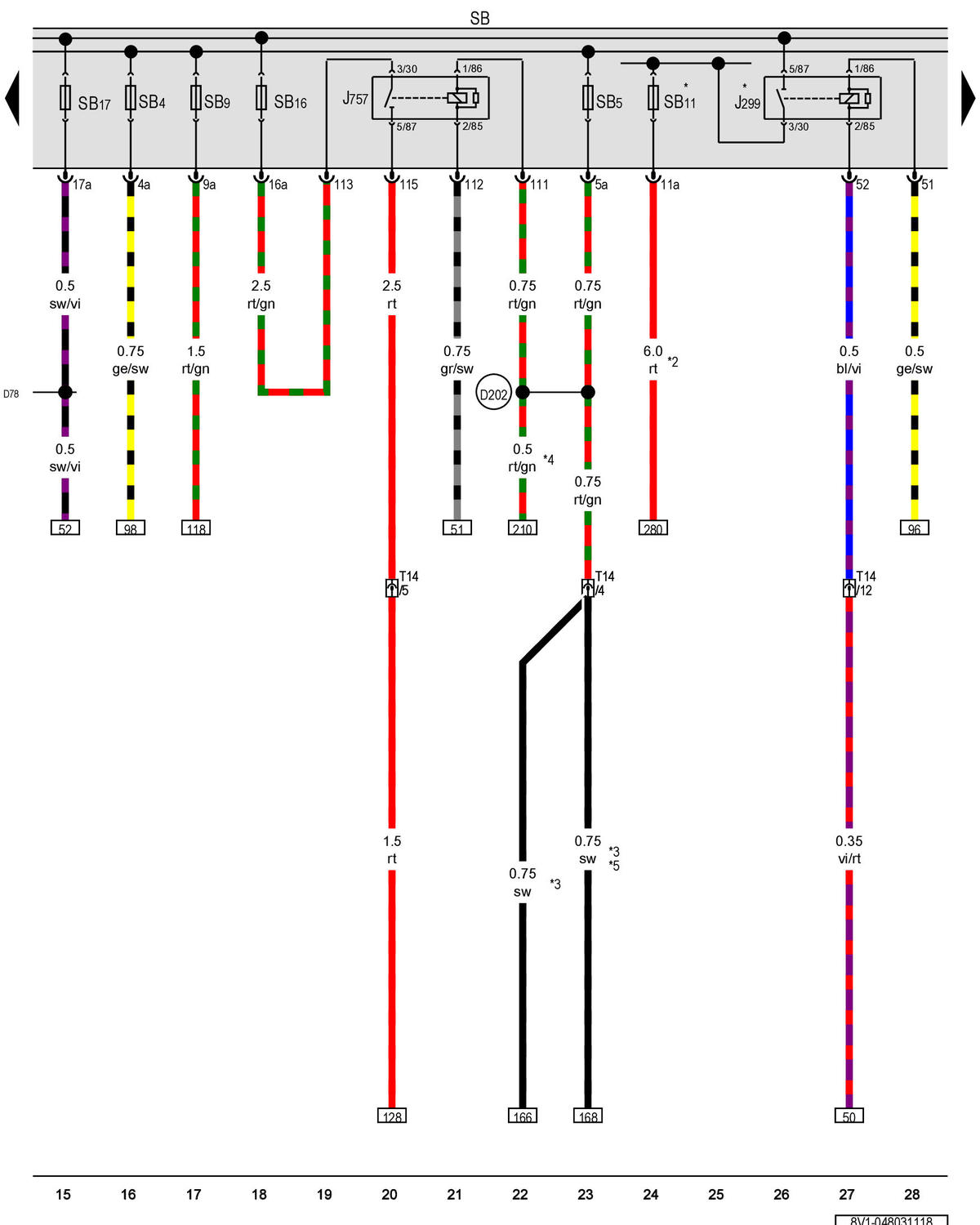

Secondary Air Injection Pump Relay, Engine Component Power Supply Relay

Courtesy of AUDI OF AMERICA, LLC

J299

Secondary Air Injection Pump Relay Type: BT, Slpdok:, Aim: BTJ299

J757

Engine Component Power Supply Relay Type: BT, Slpdok:, Aim: BTJ757

Fuse Panel B Type: BT, Slpdok:, Aim: BTSB-

SB4

Fuse 4 (On Fuse Panel B) Type: BT, Slpdok:, Aim: BTSB-

SB5

Fuse 5 (On Fuse Panel B) Type: BT, Slpdok:, Aim: BTSB-

SB9

Fuse 9 (On Fuse Panel B) Type: BT, Slpdok:, Aim: BTSB-

SB11

Fuse 11 (On Fuse Panel B) Type: BT, Slpdok:, Aim: BTSB-

SB16

Fuse 16 (On Fuse Panel B) Type: BT, Slpdok:, Aim: BTSB-

SB17

Fuse 17 (On Fuse Panel B) Type: BT, Slpdok:, Aim: BTSB-

T14

14-Pin Connector Type: BT, Slpdok:, Aim: BTT14

D78

Positive Connection 1 (30a) (in Engine/Motor Compartment Wiring Harness)

D202

Connection 6 (87A) (in Engine/Motor Compartment Wiring Harness)

For Vehicles with US Equipment

Diameter Depends on Equipment

Depending on Equipment

Omitted as a Running Change

For Vehicles Without US Equipment
