Rear Wheel Housing Liner, Removing And Installing: Removing

• Rear wheel removed. Refer to Wheels and Tires .

-- Remove the bolts -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the clips -2- from the wheel housing liner.

-- To remove the clips -3-, unlock the release lever -2- with narrow needle nose pliers in direction of -arrow A- and push it off the pin -1- in the direction of -arrow B-.

Fig 1: Identifying Clips -3-, Release Lever -2- And Pin -1-

Courtesy of AUDI OF AMERICA, LLC

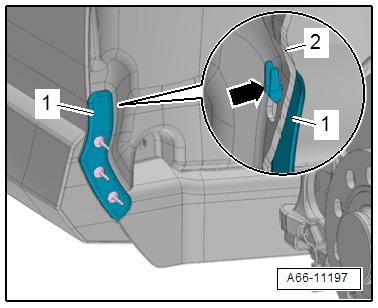

-- Remove the wheel housing liner -2- and, if necessary, disengage it from the cover -1- -arrow-.

Courtesy of AUDI OF AMERICA, LLC

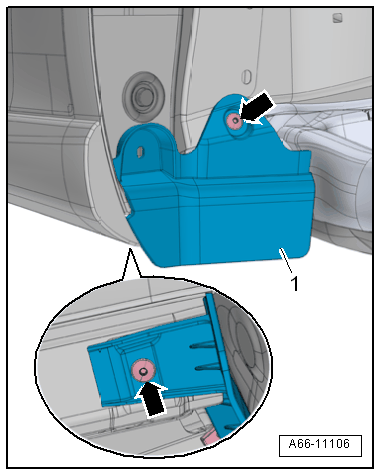

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the wheel spoiler -1-.
