Cover, Removing And Installing: Removing

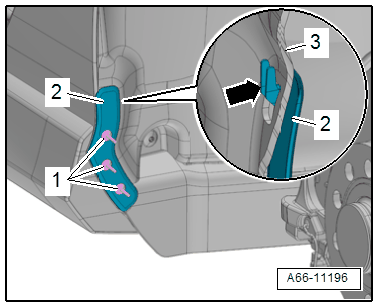

-- Remove the expanding rivets -1-.

GWWA66-11196

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the cover -2- from the wheel housing liner -3- -arrow- and remove.
