Front Wheel Spoiler, Removing And Installing, RS3 SPORTBACK: Removing

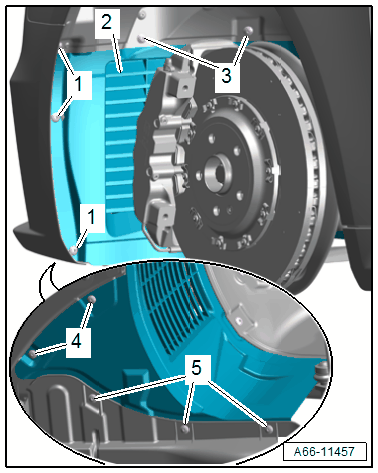

-- Remove the bolts -1, 3, 4 and 5-.

GWWA66-11457

Courtesy of AUDI OF AMERICA, LLC

-- Remove the wheel spoiler -2-.
