Front Wheel Housing Liner, Removing And Installing, Sedan: Removing

• Front wheel is removed. Refer to WHEEL, CHANGING .

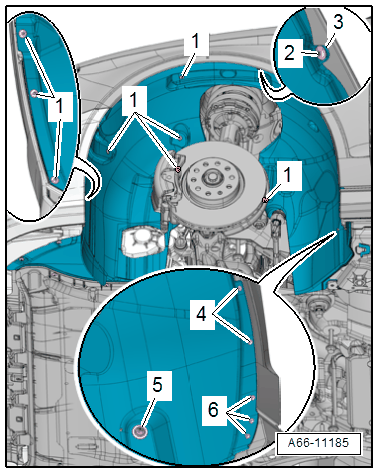

-- Remove the bolts -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -2- and then disengage the bracket -3- on the fender.

-- Remove the nut -5-.

-- Remove the expanding rivets -4 and 6-.

-- Remove the bolts -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the catches in direction of -arrow- and remove the wheel housing liner.
