Front Wheel Housing Liner, Removing And Installing, A3 And SPORTBACK: Removing

• Front wheel is removed. Refer to WHEEL, CHANGING .

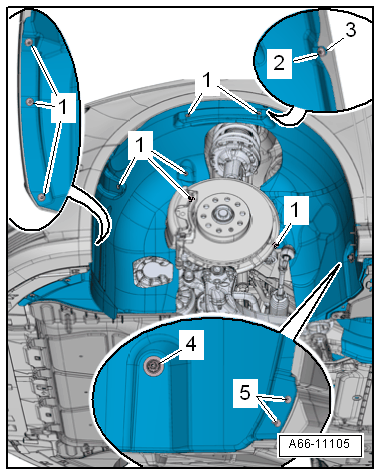

-- Remove the bolts -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -2- and then disengage the bracket -3- on the fender.

-- Remove the nut -4-.

-- Remove the expanding rivets -5-.

-- Remove the bolts -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the catches -arrow- and remove the wheel housing liner.
