Front Underbody Trim Panel, Removing And Installing: Installing

Install in reverse order of removal and note the following:

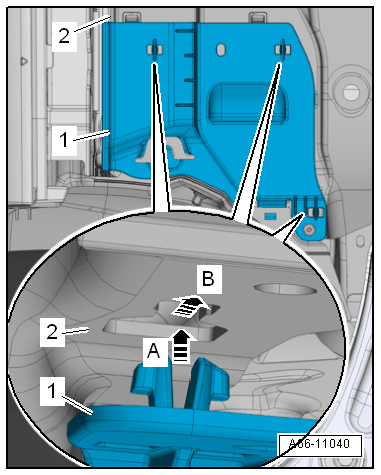

-- Place the front underbody panel mount -1- in the opening in the center underbody panel -2- in direction of -arrow A-.

GWWA66-11040Courtesy of AUDI OF AMERICA, LLC

-- Push the front underbody trim forward in the direction of travel in direction of -arrow B- until it engaged audibly.
