Overview - Spoiler, S3 Sedan

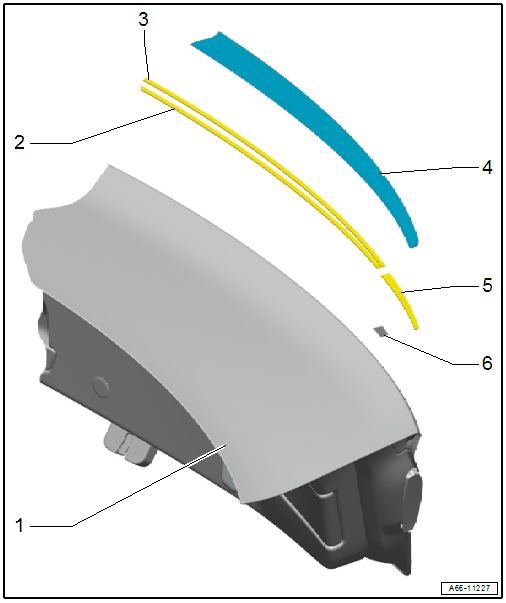

Fig 1: Exploded View Of Spoiler (S3 Sedan)
GWWA66-11227Courtesy of AUDI OF AMERICA, LLC
  1. Rear Lid
  2. Two-Sided Adhesive Tape
    • Front center
  3. Two-Sided Adhesive Tape
    • Rear center
  4. Spoiler
  5. Two-Sided Adhesive Tape
    • Outside
  6. Adhesive Bead
