Rear Noise Insulation, Removing And Installing, Version 1: Removing

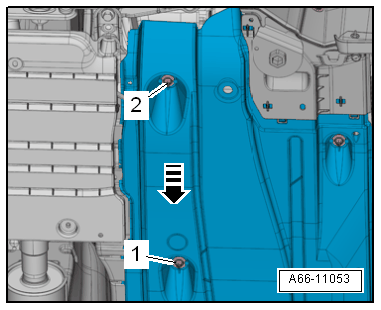

-- Remove the nuts -1 and 2- and push the underbody panels slightly downward in direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the expanding rivets -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear noise insulation -1-.
