Front Noise Insulation, Removing And Installing: Removing

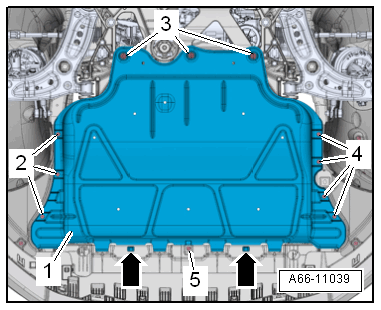

-- Remove the bolts -2 to 5-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the catch -arrows- and remove the front noise insulation -1- rearward.

• The tabs for the front noise insulation will disengage at the same time.

-- Remove the front noise insulation.
