Name Badges And Emblems On Sides, Replacing

Courtesy of AUDI OF AMERICA, LLC

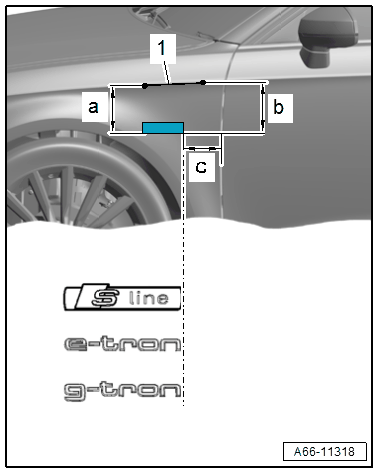

A3, Sportback:

• Dimension -a- = 57 mm
• Dimension -b- = 58 mm
• Dimension -c- = 43 mm.

-1- Cover edge in fender.

Sedan:

• Dimension -a- = 75 mm.
• Dimension -b- = 78 mm.
• Dimension -c- = 33 mm.

-1- Cover edge in fender.
