Side Window Trim Molding, Removing And Installing, SPORTBACK With Gloss Package: Removing

NOTE:

Do not twist or bend the side window trim molding.

-- Removing the roof trim molding. Refer to ROOF TRIM MOLDING, REMOVING AND INSTALLING .

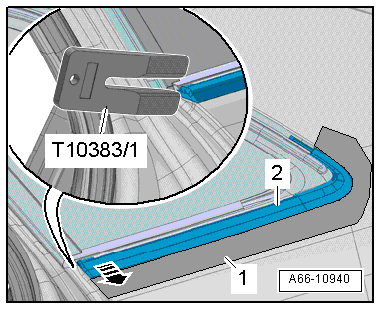

-- Tape off the area around the side window trim molding -2- with adhesive tape -1- so that the painting is not damaged.

GWWA66-10940Courtesy of AUDI OF AMERICA, LLC

-- Press off the side window trim molding from the clips using the : T10383/1  .

-- Remove the side window trim molding.
