Side Window Trim Molding, Removing And Installing, SPORTBACK With Gloss Package: Installing

Install in reverse order of removal and note the following:

-- Coat the side window rubber strips and the side window trim molding with tire mounting paste.

-- Position the side window trim molding -1- to the body on the C-pillar at the corner -arrow- of the rubber strip.

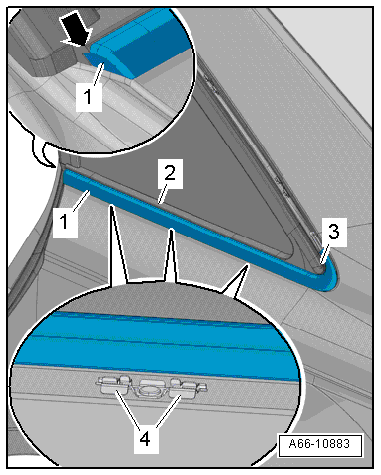

Fig 1: Mounting Side Window Trim Molding -1-

Courtesy of AUDI OF AMERICA, LLC

• The rubber strip -2- must be above the trim molding.
• The clips -4- must be parallel to the side window trim molding.

-- Press the side window trim molding onto the clips until it clicks into place.

• At the same time the rubber strip must cover the side window trim molding.
• The rubber strip -3- must be installed into the curve in the side window trim molding using : T10383/1  .

-- Install the roof trim molding. Refer to ROOF TRIM MOLDING, REMOVING AND INSTALLING .
