Side Window Trim Molding, Removing And Installing, Gloss Package A3: Installing

Install in reverse order of removal and note the following:

-- Coat the rubber strips and the side window trim molding with tire mounting paste.

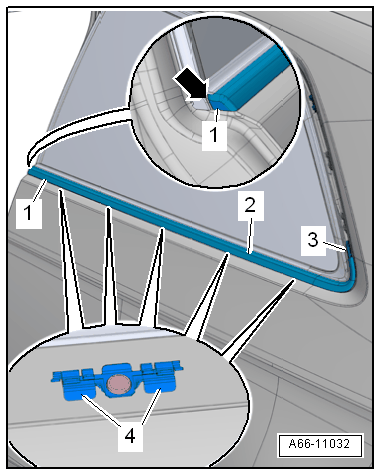

-- Position the side window trim molding -1- to the body on the B-pillar at the end -arrow- of the rubber strip.

Courtesy of AUDI OF AMERICA, LLC

• The rubber strip -2- must be above the trim molding.
• The clips -4- must be parallel to the side window trim molding.

-- Push in the side window trim molding until it engages audibly in the clips.

• At the same time the rubber strip must cover the side window trim molding.
• The rubber strip -3- must be installed into the curve in the side window trim molding using : T10383/1  .
