Overview - Trim Molding And Covers

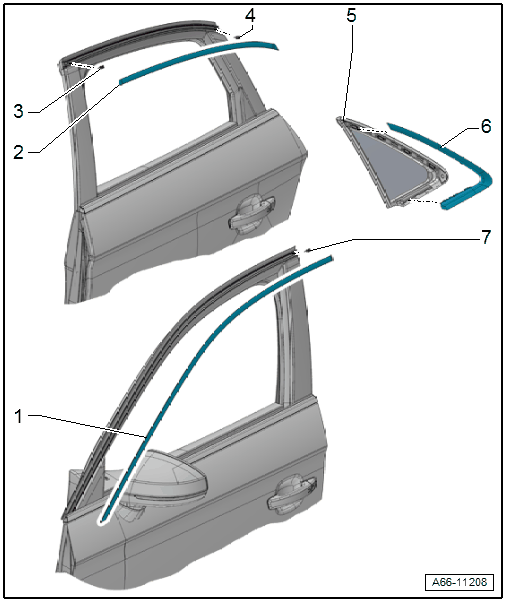

Fig 1: Exploded View Of Trim Molding And Covers

Courtesy of AUDI OF AMERICA, LLC

Front Door Trim Molding
- Removing and installing. Refer to FRONT DOOR TRIM MOLDING, REMOVING AND INSTALLING, SEDAN
Rear Door Trim Molding
- Removing and installing. Refer to REAR DOOR TRIM MOLDING, REMOVING AND INSTALLING, SEDAN
Clip
- With rear door label
Clip
- With rear door label
Side Window
Side Window Trim Molding
- Removing and installing. Refer to SIDE WINDOW TRIM MOLDING, REMOVING AND INSTALLING, SEDAN
Clip
- With front door label
