Overview - B-/C-Pillar Trim, Sedan

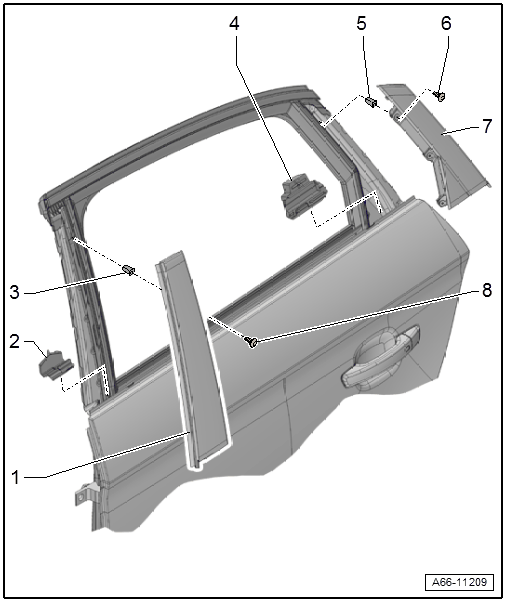

Fig 1: Exploded View Of B-/C-Pillar Trim (Sedan)

Courtesy of AUDI OF AMERICA, LLC

B-Pillar Trim
- Removing and installing. Refer to REAR DOOR B-PILLAR TRIM, REMOVING AND INSTALLING
Seal
- For the B-pillar trim
Clip Nut
- Quantity: 3
Seal
- For the C-pillar trim
Clip Nut
- Quantity: 3
Bolt
- 2.5 Nm
- Quantity: 3
C-Pillar Trim
- Removing and Installing. Refer to C-PILLAR DOOR TRIM, REMOVING AND INSTALLING, SEDAN
Bolt
- 2.5 Nm
- Quantity: 3
