Overview - B-/C-Pillar Trim, SPORTBACK

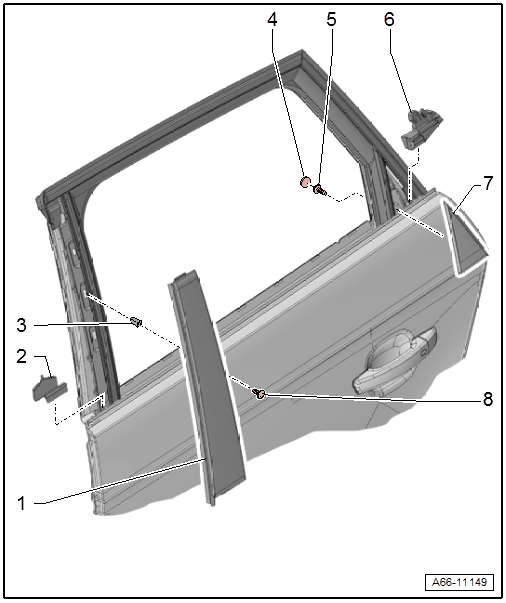

Fig 1: Exploded View Of B-/C-Pillar Trim (Sportback)

Courtesy of AUDI OF AMERICA, LLC

B-Pillar Trim
- Removing and installing. Refer to REAR DOOR B-PILLAR TRIM, REMOVING AND INSTALLING
Seal
- For the B-pillar trim
Clip Nut
- Quantity: 3
Grommet
Bolt
- 2.5 Nm
Seal
- For the C-pillar trim
C-pillar trim
- Removing and installing. Refer to C-PILLAR DOOR TRIM, REMOVING AND INSTALLING, SPORTBACK
Bolt
- 2.5 Nm
- Quantity: 3
