Wheel Housing Liner Cover, Removing And Installing: Removing

-- Carefully warm the cover -3- using a : VAS1978/14A  .

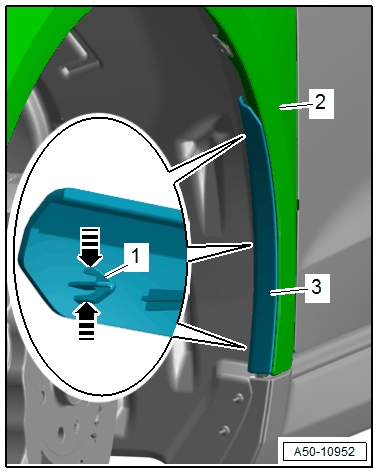

GWWA50-10952Courtesy of AUDI OF AMERICA, LLC

-- Release the catches -1- in the direction of -arrows- and carefully pry out the cover from the fender -2- using the : 3409  .
